Sample prep & stability
Laboratory Shaker
- Models
- LZ-DSA100; LZ-DTS-A100; LZ-OS-A100; LZ-PS-A300; LZ-ROS-A100
- Control Interface
- 4.3 -inch LCD touch screen
- Oscillating Transition Band Range
- 30 to 300 rpm
- Speed Control Accuracy
- 1 rpm
- Amplitude
- 26 mm or 50 mm optional
Orbital, reciprocating and incubated shaking for extraction and dissolution work.
Added to your inquiry list. It travels with your next quote request.
5 models
Product Description
Laboratory Shaker specification for every model we supply. Figures are the manufacturer’s published values.
| Specification | Value |
|---|---|

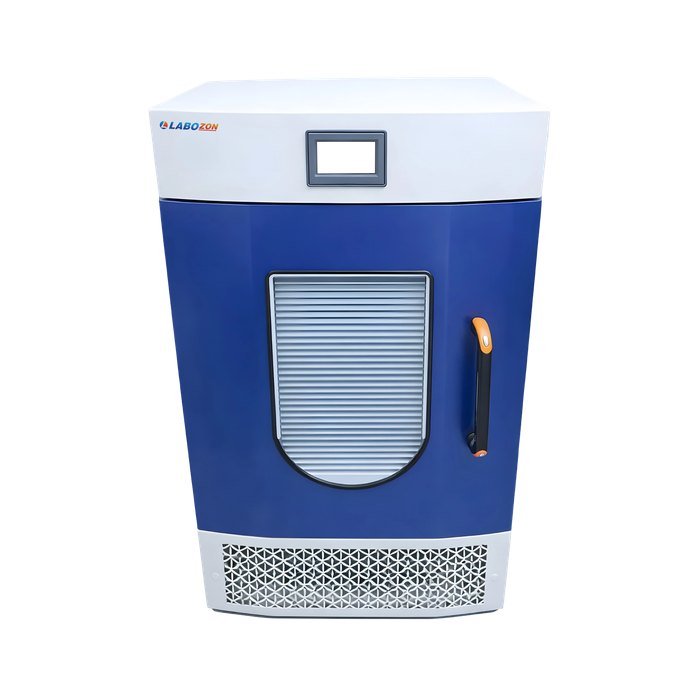

| LZ-DSA100 — CO₂ Double Layer Shaker Incubator | |
| Control Interface | 4.3 -inch LCD touch screen |
| Oscillating Transition Band Range | 30 to 300 rpm |
| Speed Control Accuracy | 1 rpm |
| Amplitude | 26 mm or 50 mm optional |
| Temperature Control Mode | PID control mode |
| Temperature Control Range | 4°C to 60°C |
| Temperature Display Resolution | 0.1°C |
| Temperature Fluctuation | ±0.1°C |
| Temperature Field Uniformity | ±0.3°C |
| Heating Power | 550 W |
| Cooling Power | 250 W |
| Timing Function | 0 to 999.9 hours |
| Bracket Size | 500x500 mm |
| Maximum Carrying Capacity | 35 kg |
| Maximum of Conical Flask Loaded | Single layer 25x250 ml; 9x500 ml; 24x1000 ml;15x2000 ml |
| Cabin Volume | 310 L |
| Illumination | FI lamp tube, 30watts |
| CO₂ Measurement Principle | IR detection |
| CO₂ Control Range | 0-20% |
| CO₂ Display Resolution | 0-10% |
| CO₂ Measurement Accuracy | ±1%FS |
| CO₂ Volatility | 0.02%/°C |
| Volatility of Long Term use of CO₂ | < 1%/2years |
| CO₂ Supply | 0.05 to 0.1MPa is suggested |
| Humidity Display | Real-time humidity display |
| Shading Curtain | Built-in push pull shading curtain |

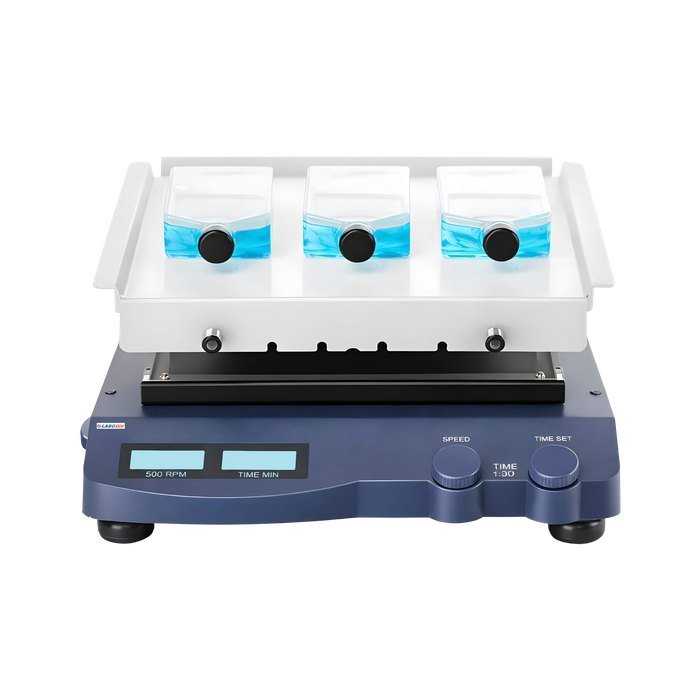

| LZ-DTS-A100 — Digital 3D Shaker | |
| Maximum Load Capacity | 5 kg ( with platform) |
| Shaking speed range | 10 ~ 70 rpm |
| Tilt Angle | 9° |
| Display | LCD *2 |
| Motor | DC |
| Timer | 1min-19h59min |
| Working Conditions | 5-40°C, 80%RH |
| Motor Input Power | 40 W |
| Motor Output Power | 24 W |
| Dimensions | 360×430×106 mm |
| Power | 50 W |
| Weight | 9 kg |

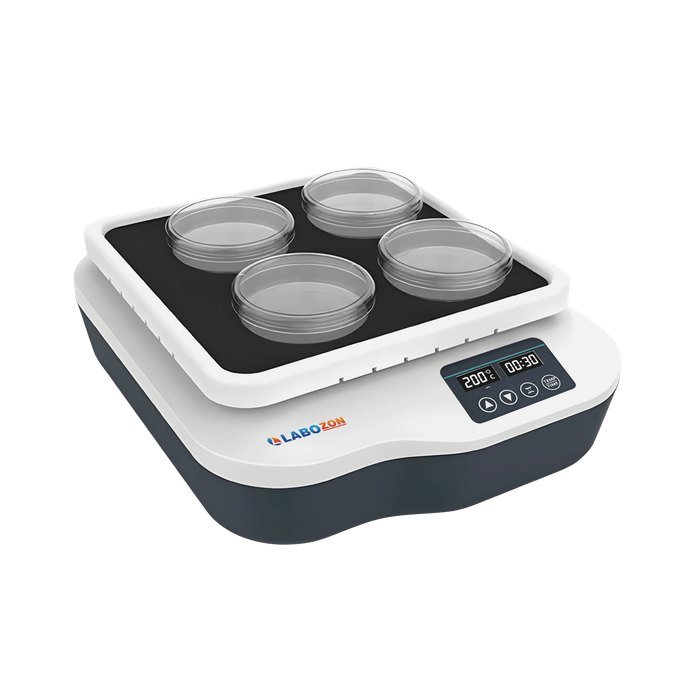

| LZ-OS-A100 — Orbital Shaker | |
| Speed | 40 to 200 rpm |
| Motor | DC motor |
| Platform | 268x268 mm Plate size |
| Orbit Diameter | 20 mm |
| Display | LCD |
| Timing range | 1min to 19h59mins |
| Maximum Load | 2 kg |
| Power | 20W |
| Electrical Supply | AC 100-240V |
| Dimension | 294x348x123 mm |

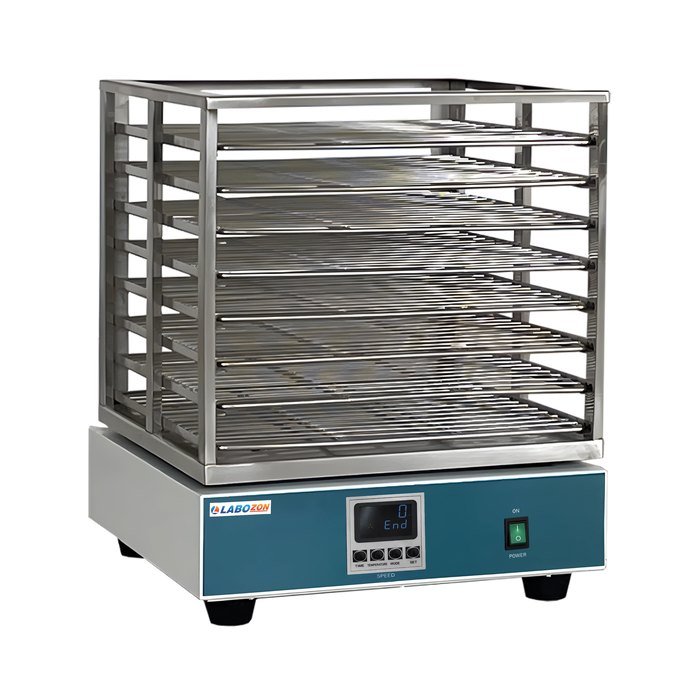

| LZ-PS-A300 — Platelet Shaker | |
| Shaking Speed | 60 rpm |
| Capacity | 96 bags |
| No. of Shelves | 8 |
| Motion Type | Reciprocating |
| Amplitude | 20 mm |
| Power Consumption | 180 W |
| Electrical Supply | 220-240V / 50-60Hz |
| Overall Dimension | 680 x 520 x 470 mm |
| Weight | 38 kg |

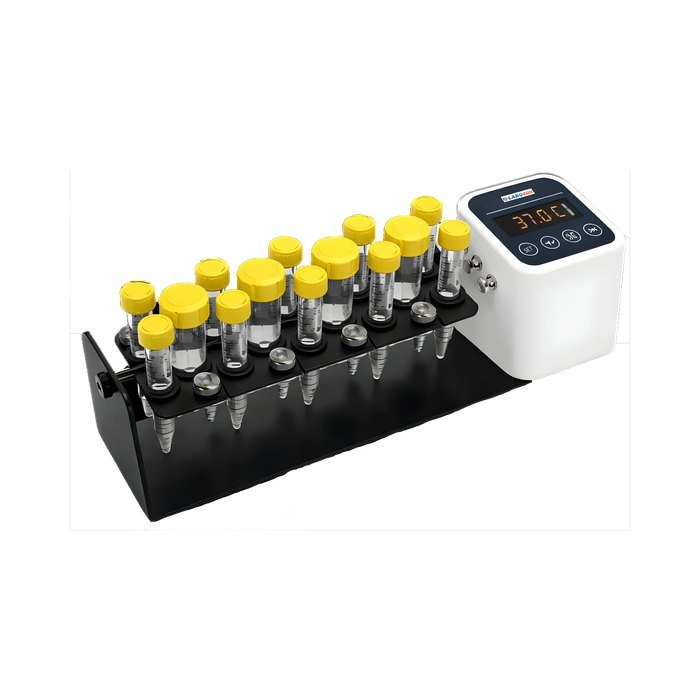

| LZ-ROS-A100 — Rotary Shaker | |
| Speed range | 20-80 rpm |
| Type | Rotating Shaking |
| Motor | Brushless motor |
| Timer | 1min-23h59min |
| Ambient Temperature | 5 ~ 40°C |
| Ambient Humidity | 80% RH |
| Tubes composition | 50ml*4 + 15ml*10+2ml*8 50ml*12 15ml*23 1.5/2ml*28 |
| Power | 20 W |
| Power Supply | AC100-220V, 50/60Hz |
| Dimensions | 510 x 160 x 180 mm |
| Weight | 2.2 kgs |
Specification published by Labozon. Confirm the exact configuration on the written quotation before ordering.
Key features
What the range offers
- LCD touch screen display
- Intuitive control and easy to operate
- Built-in push pull type shading curtain
- Smart phone remote monitoring function
- Real-time view of running status of the machine
- Double glass door to ensure excellent heat insulation and safety
- Multiple sterilization system
- Odor free adhesive plate material and environmental safety
Applications
Where it is used
- These orbital shakers are suitable for cell culturing, staining/de-staining and general mixing in microbiology, chemistry, immunology, biochemistry, molecular biology, biopharmaceutical and biomedical laboratories.
