Heating, cooling & storage
Laboratory Refrigerators
- Models
- LZ-BBR-A305; LZ-EPR-A101; LZ-ICR-A100; LZ-MR-A100D; LZ-PR-A115
- Capacity
- 108 L
- Ambient Temperature
- 10 to 32°C
- Temperature Range
- 4±1°C.
- Refrigerant
- R134a
Pharmacy, blood bank and explosion-proof cold storage with monitored temperature.
Added to your inquiry list. It travels with your next quote request.
5 models
Product Description
Laboratory Refrigerators specification for every model we supply. Figures are the manufacturer’s published values.
| Specification | Value |
|---|---|

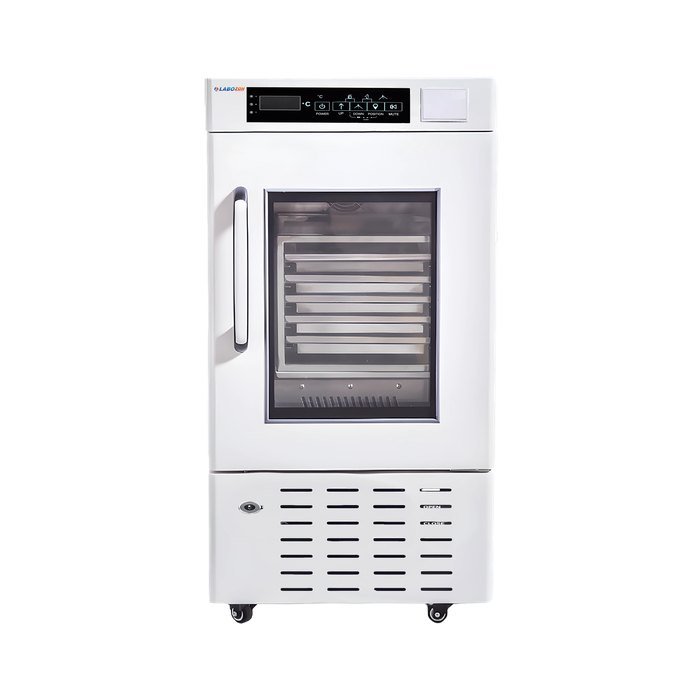

| LZ-BBR-A305 — Blood Bank Refrigerator | |
| Capacity | 108 L |
| Ambient Temperature | 10 to 32°C |
| Temperature Range | 4±1°C. |
| Alarms | High/low temperature alarm, senor alarm, powerfailure alarm, low battery alarm, door ajar alarm, controller failure |
| Refrigerant | R134a |
| Cooling Type | Forced air cooling |
| Defrosting | Automatic |
| Compressor | 1 pc |
| Material | Internal stainless steel, external SPCC sprayed steel |
| Shelves /drawers | 6shelves/1drawer |
| Caster | Universal |
| Sensor | NTC |
| Display | Digital |
| Noise | 49.6 dBa |
| Temperature controller | Microprocessor |
| Power Consumption | 175 W |
| Internal Dimension | 432×462×478 mm |
| External Dimension | 540×630×1030 mm |
| Packgaging Dimensions | 700x585x1200 mm |
| Power Supply | 220V/50Hz/60Hz |
| Net Weight | 74 kgs |
| Gross Weight | 95 kgs |
| LZ-EPR-A101 — Explosion Proof Refrigerators | |
| Capacity | 416 L |
| Temperature Range | 2 to 8°C |
| Ambient Temperature | +10 to +32°C |
| Refrigerant | R290 |
| Defrost | Auto |
| Cooling | Forced Air cooling |
| Display | Digital |
| Shelves/Drawers | Shelves /5 |
| Sensor | NTC |
| Material | External SPCC sprayed steel Internal Stainless steel |
| Controller | Microprocessor |
| Alarm | Yes |
| Noise | 50db |
| Compressor | 1 |
| Power | 238 W |
| Power Supply | 220V-110 V/ 50-60 Hz |
| Internal Dimension(WxDxH) | 685 x 429 x 1380 mm |
| External Dimension(WxDxH) | 785 x 552 x 1927 mm |
| Packing Dimension(WxDxH) | 880 x 650 x 2100 mm |
| Net Weight | 150 kg |
| Gross Weight | 165 kg |

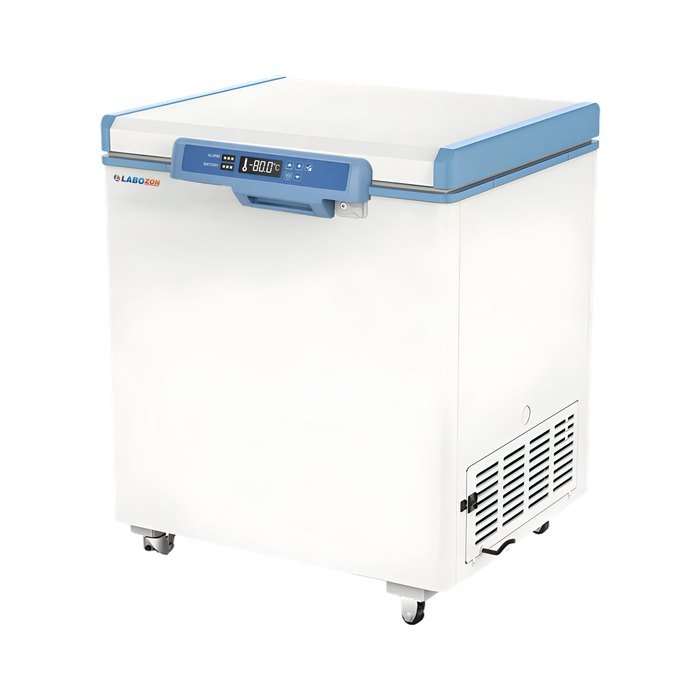

| LZ-ICR-A100 — Ice Lined Refrigerator | |
| Capacity | 150L |
| Type | Chest |
| Temperature Range | 2°C to 8°C |
| Ambient Temperature | 10°C to 43°C |
| Cooling Performance | 5°C |
| Refrigerant | R290 |
| Defrost | Manual |
| Cooling | Direct cooling |
| Display | Digital |
| Baskets | 2 |
| Castor | 4 |
| Controller | Microprocessor |
| Alarm | High and low temperature, low battery, power failure, sensor failure etc |
| Power Consumption | 220 W |
| Electrical Supply | 220-240~50/60 |
| Internal Dimension | 585 x 465 x 651 mm |
| External Dimension | 811 x 775 x 964 mm |
| Packing Dimension | 875 x 805 x 1120 mm |
| Net Weight | 76 kgs |
| Gross Weight | 96 kgs |

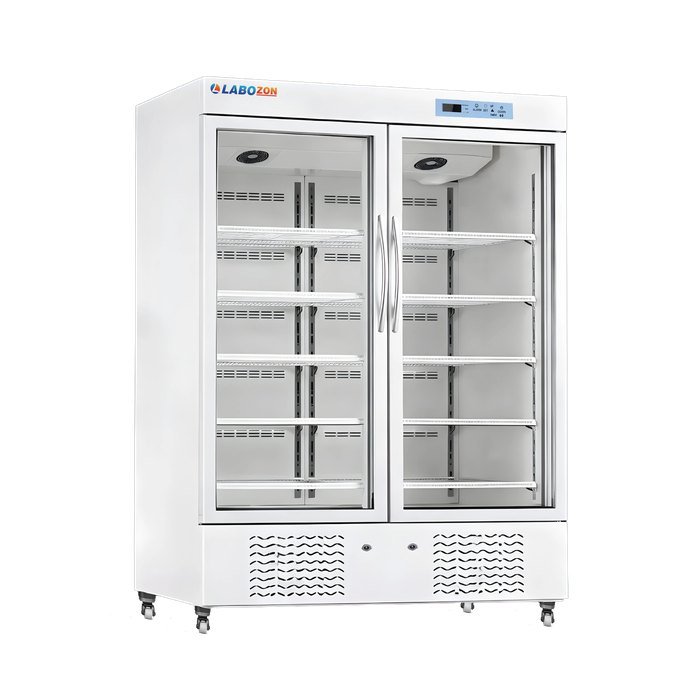

| LZ-MR-A100D — Double Door Medical Refrigerator | |
| Capacity | 662 L |
| Cabinet Type | Double door Upright |
| Temperature Resolution | 0.1°C |
| Temperature Range | 2 to 20°C |
| Alarms | Power failure alarm, Temperature sensor failure alarm, High / Low temperature alarm, Door open alarm |
| Refrigerant | Non HCFC |
| Material | White plastic coated galvanised steel |
| Shelves | 10 |
| Internal Dimension | 1100 x 454 x 1325 mm |
| External Dimension | 1220 x 642 x 1885 mm |
| Weight | 158 kg |
| Electrical Requirement | AC220 V/ 50Hz |

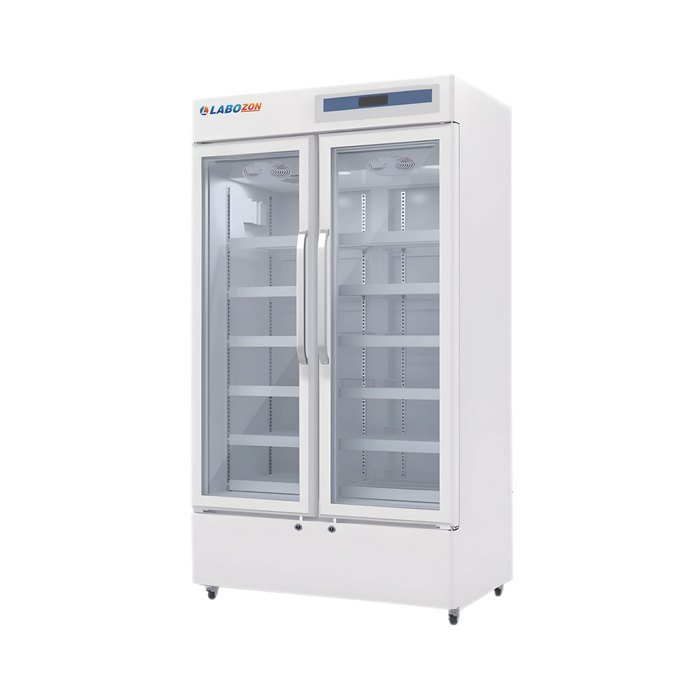

| LZ-PR-A115 — Pharmacy Refrigerator | |
| Capacity | 725 L |
| Temperature Range | 2 to 8°C |
| Ambient Temperature | +16 to +32°C |
| Cooling performance | 5°C |
| Refrigerant | R290 |
| Defrost | Auto |
| Cooling | Air cooling |
| Display | Digital |
| Shelves | 12 |
| Castors | 4 |
| Material | External PCM, Internal - Aluminum plate with spraying/ stainless steel (optional) |
| Controller | Microprocessor |
| Alarm | Yes |
| Climate class | N |
| Compressor | 1 |
| Power | 540 W |
| Electrical Supply | 220~240 V , 50Hz |
| Internal Dimension(WxDxH) | 980 x 595 x 1260 mm |
| External Dimension(WxDxH) | 1093 x 772 x 1992 mm |
| Packing Dimension(WxDxH) | 1187 x 795 x 2136 mm |
| Net weight | 171 kg |
| Gross weight | 208 kg |
Specification published by Labozon. Confirm the exact configuration on the written quotation before ordering.
Key features
What the range offers
- CE certified
- Digital display can show various parameters simultaneously
- Comes with auto defrost, and forced air cooling
- Featured with 6 shelves and 1drawer , heavy duty castors with lockable feature
- Audible and visual alarm system
- CFC free R134a refrigeration
- Advanced air cooling design, precision temperature control, safe guarding security of blood
- Furnished with stainless steel inner container refrigeration
Applications
Where it is used
- Used in different laboratories and research facilities to store chemical or experimental reagents that are flammable, explosive, evaporative or corrosive.
- Ice Lined Refrigerators are widely applicable in epidemic prevention services, clinics, research institute, hospitals, blood bank and other PHC centres
- Ideal for the safe storage of vaccines, biological samples, reagents, enzymes, and temperature-sensitive pharmaceuticals in hospitals, laboratories, and research facilities
- The Pharmacy Refrigerator is used in the area of medical, hospital and clinical application to store medicines, vaccines, regents and bio-medical product.
Next step
Tell us the capacity and the duty.
We will confirm the right model, the price and the lead time.
