Heating, cooling & storage
Laboratory Oven
- Models
- LZ-FDO-A104; LZ-HDO-B110; LZ-HTO-A101; LZ-HVO-A105; LZ-NCO-A110
- Capacity
- 240 L
- Temperature Range
- RT+10-250°C
- Temperature Fluctuation
- ±0.5°C
- Temperature Resolution
- ±0.1°C
Drying, vacuum and convection ovens for loss-on-drying and general sample drying.
Added to your inquiry list. It travels with your next quote request.
5 models
Product Description
Laboratory Oven specification for every model we supply. Figures are the manufacturer’s published values.
| Specification | Value |
|---|---|
| LZ-FDO-A104 — Forced Air Drying Oven | |
| Capacity | 240 L |
| Temperature Range | RT+10-250°C |
| Temperature Fluctuation | ±0.5°C |
| Temperature Resolution | ±0.1°C |
| Temperature Uniformity | ±2.5% |
| Circulation Mode | Forced air |
| Sensor | PT100 |
| Controller | PID |
| Display | LCD |
| Timer | 1–9999 min |
| Material | Internal: Stainless steel Electro-Galvanized Steel with Antibacterial Powder Coating |
| Shelves | 2 |
| Safety Protection | Audible and visual alarm |
| Power Consumption | 2100 W |
| Power Supply | AC220V, 50/60Hz |
| Internal Dimensions (W×D×H) | 550 × 500 × 800 mm |
| External Dimensions (W×D×H) | 690 × 700 × 1140 mm |
| Packing Dimensions (W×D×H) | 780 × 920 × 1270 mm |
| Net Weight | 85 kg |
| Gross Weight | 110 kg |
| LZ-HDO-B110 — Drying Oven | |
| Chamber Volume | 1000 L |
| Temperature Range | RT+10~250°C |
| Display Resolution | 0.1℃ |
| Temperature Stability | ±1℃ |
| Temperature Accuracy | - |
| Temperature Uniformity | ±3%᷉ |
| Ambient Temperature | + 5~40°C |
| Display | LCD |
| Shelves | 4 pcs |
| Timing Range | 0 to 9999 min |
| Internal dimension (W×D×H) | 820 x 730x 1600 mm |
| External dimension (W×D×H) | 1060 x 890 x 2070 mm |
| Power consumption | 5200 W |
| Power supply | 380 V, 50 Hz |

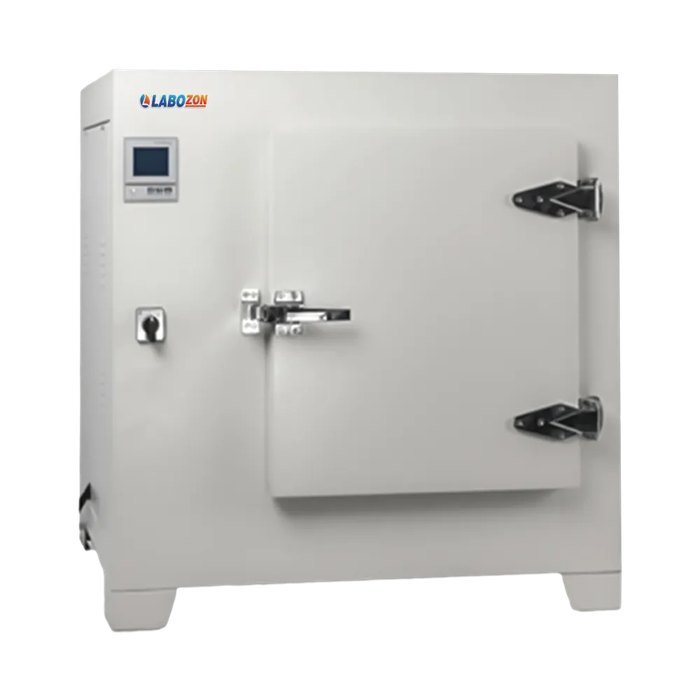

| LZ-HTO-A101 — High Temperature Drying Oven | |
| Capacity | 136 L |
| Temperature Range | RT+5 to 500℃ |
| Temperature Fluctuation | ≤2℃ |
| Temperature: Uniformity | ±3.5℃% |
| Temperature Resolution | 0.1℃ |
| Timing Range | 1 to 9999m |
| Shelves | 3 |
| Power Consumption | 6000W |
| Power Supply | AC380V,50HZ |
| Chamber Dimension | 550 × 450 × 550 mm |
| Exterior Dimension | 1020 × 650 × 960 mm |
| Weight | 100 kg |

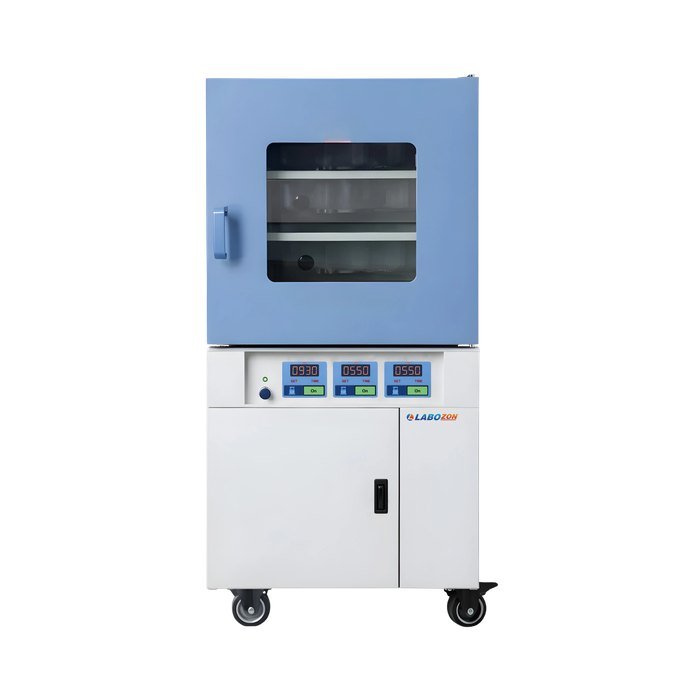

| LZ-HVO-A105 — Vacuum Oven | |
| Chamber Volume | 913 L |
| Temperature Range | RT+10 to 200°C |
| Temperature Resolution | 0.1°C |
| Temperature Stability | ±1°C |
| Display | LCD |
| Vacuum Pump | Yes Standard |
| Vacuum Degree | 133 Pa |
| Vacuum Sensor | Resistance silicon tube pressure sensor |
| Vacuum Control Range | 10 to 106Pa |
| Observation Window | Dual layered tempered glass |
| Chamber Material | Stainless Steel 304 (1Cr18Ni9Ti) |
| Shelves | 5 pcs (Independent temp. control) |
| Shelves Material | Aluminum tray |
| Ambient Temperature | 5 to 40°C |
| Power | 5600 W |
| Power Supply | AC 380 V, 50 Hz |
| Interior Dimension | 750×1160×1050 mm |
| Exterior Dimension | 1400×1395×2010 mm |
| Packing Dimension | 2220×1650×1300 mm |
| Gross Weight | 1014 kg |
| LZ-NCO-A110 — Natural Convection Oven | |
| Chamber Volume | 54 L |
| Temperature Range | RT+10 to 200℃ ( Max 300℃) |
| Display Resolution | 0.1℃ |
| Temperature Stability | ±1℃ |
| Capable of Heating to 100℃ | 25 minutes |
| Temperature Uniformity | ±2.5% |
| Display | Touch screen |
| Maximum Shelf Capacity | 20 kg |
| Shelves | 2 (Can be extended up to 6 shelves ) |
| Timing Range | 1 to 5999 min |
| Internal dimension (W × D × H) | 400 × 330 × 380 mm |
| External dimension (W × D × H) | 690 × 468 × 640 mm |
| Power Supply | AC 220 V, 50 Hz |
| Power Consumption | 1050 W |
| Net Weight | 45 kg |
| Gross Weight | 55 kg |
Specification published by Labozon. Confirm the exact configuration on the written quotation before ordering.
Key features
What the range offers
- Forced-air convection system
- PID microprocessor controller
- High-definition LCD display
- Efficient insulation design
- High-performance fan
- Built-in observation window
- Durable stainless-steel interior
- Audible and visual alarm
Applications
Where it is used
- Suitable for drying, heat treatment, material testing, sample preparation, scientific research, environmental analysis, pharmaceutical laboratories, industrial quality control, educational institutions, and healthcare facilities.
- A drying Oven is used for glassware desiccation, laboratory sample, moisture elimination, electronic components torrefaction and aging.
- Used for drying, curing, annealing, sterilization, heat treatment, material testing, electronics drying, and laboratory thermal processing.
- Natural Convection Oven are used across laboratories, research and development, pharmaceuticals, food processing, manufacturing, environmental testing, academic institutions, healthcare, electronics, and agriculture
