Sample prep & stability
Laboratory Mixer
- Models
- LZ-TRM-A110; LZ-TUR-A100; LZ-TUR-A101; LZ-VM-A100; LZ-VM-A110
- Speed Range
- 20 to 80 rpm
- Motion Type
- Roll and Swing
- Amplitude
- 22mm
- No. of Rollers
- 7
Vortex, roller and tube mixers for resuspension and homogeneous sample preparation.
Added to your inquiry list. It travels with your next quote request.
5 models
Product Description
Laboratory Mixer specification for every model we supply. Figures are the manufacturer’s published values.
| Specification | Value |
|---|---|

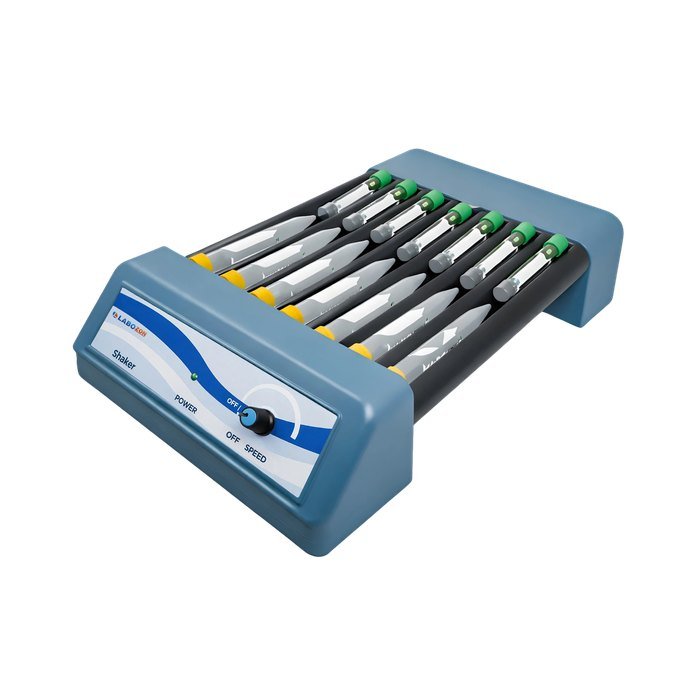

| LZ-TRM-A110 — Tube Roller Mixer | |
| Speed Range | 20 to 80 rpm |
| Motion Type | Roll and Swing |
| Amplitude | 22mm |
| No. of Rollers | 7 |
| Operation Type | Continuous |
| Speed control | Knob |
| Power Consumption | 15 W |
| Power Supply | 100 to 240 V AC, 50/60 Hz |
| External Dimensions | 440 x 360 x 95 mm |
| Packing Dimensions | 510 x 340 x 170 mm |
| Net Weight | 4 kg |
| Gross Weight | 5 kg |

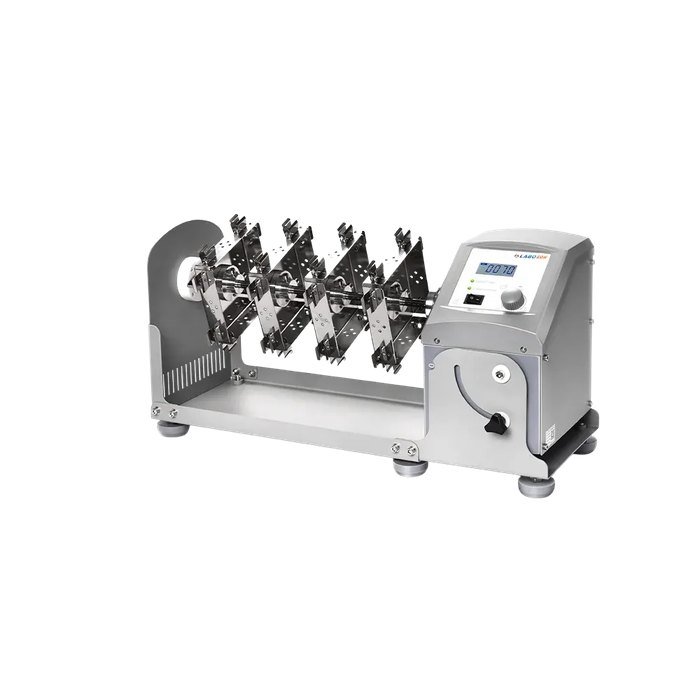

| LZ-TUR-A100 — Tube Rotator | |
| Speed | 10-70rpm |
| Operation Mode | Continuous / timer |
| Motor | Brushless DC |
| Tilt Angle | 0-90° |
| Rotation Angle | 360° |
| Display | LCD |
| Timer | 1-1199min |
| Working Conditions | 5-40°C, 80% RH |
| Protection | IP21 |
| Power Consumption | 40W |
| Power Supply | 100-240V, 50/60Hz |
| Dimensions | 220 × 510 × 260 mm |
| Packing Dimensions | 620 × 300 × 370 mm |
| Net Weight | 10 kg |
| Gross Weight | 14 kg |

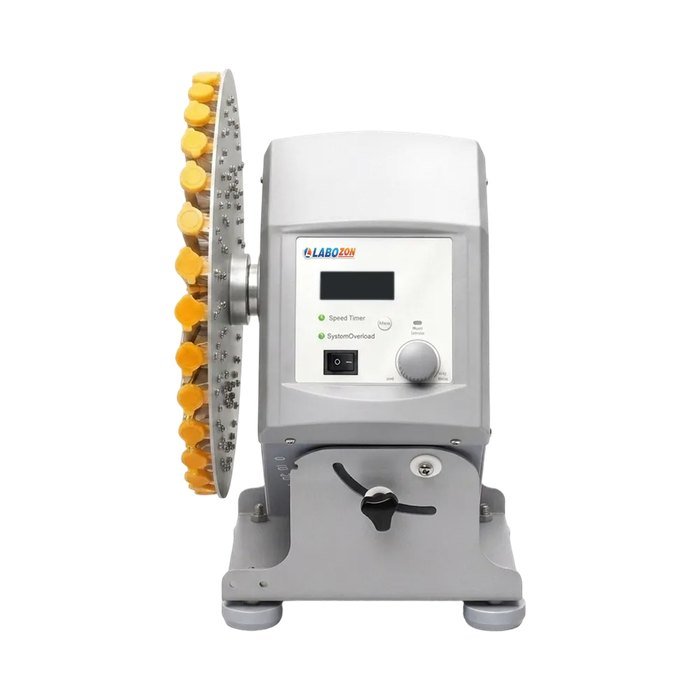

| LZ-TUR-A101 — Tube Rotator | |
| Speed | 10-70 rpm |
| Operation Mode | Continuous / timer |
| Motor | Brushless DC |
| Tilt Angle | 0-90° |
| Rotation Angle | 360° |
| Display | LCD |
| Timer | 1-1199min |
| Working Conditions | 5-40℃, 80%RH |
| Protection | IP21 |
| Power Consumption | 40W |
| Power Supply | 100-240V , 50/60Hz |
| Dimensions | 280×210×300 mm |
| Weight | 5 kg |

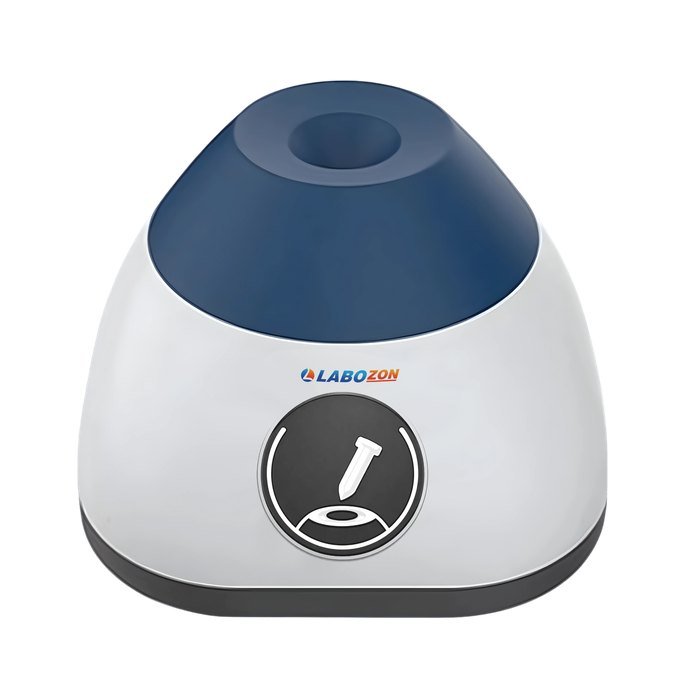

| LZ-VM-A100 — Mini Vortex Mixer | |
| Capacity | 50 ml |
| Control Mode | Fixed Speed |
| Motor | Brushless motor |
| Amplitude | 4.5 mm (Circular motion) |
| Speed Range | 3000 rpm |
| Protection Level | IP42 |
| Humidity | 80% RH |
| Ambient Temperature | 5 to 40°C |
| Power | 12 W |
| Electrical Supply | 100 to 240 V, 50/60 Hz |
| Dimension | 93x93x72 mm |
| Net Weight | 0.36 kg |
| Gross Weight | 0.55 kg |

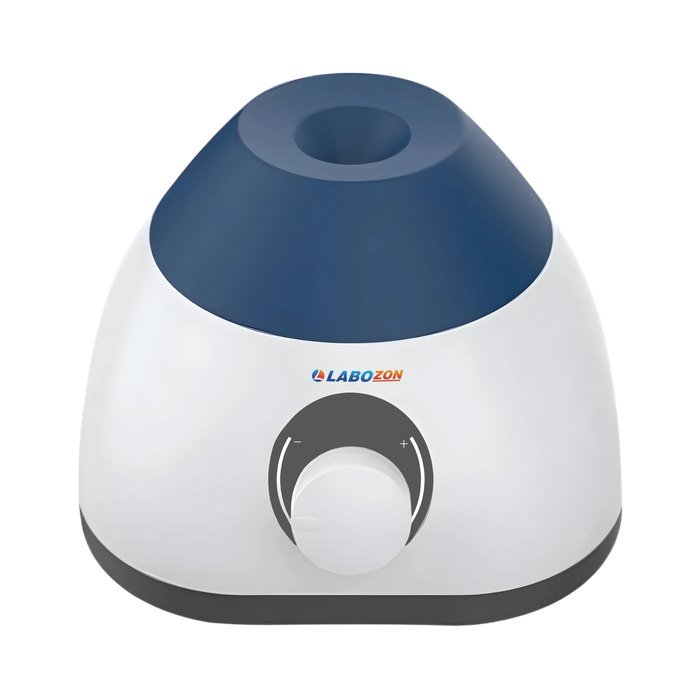

| LZ-VM-A110 — Mini Vortex Mixer | |
| Capacity | 50 ml |
| Control Mode | Speed Control Knob |
| Motor | Brushless motor |
| Amplitude | 4.5 mm (Circular motion) |
| Speed Range | 0 to 3000 rpm |
| Protection Level | IP42 |
| Humidity | 80% RH |
| Ambient Temperature | 5 to 40°C |
| Power | 12 W |
| Electrical Supply | 100 to 240 V, 50/60 Hz |
| Dimension | 100x93x72 mm |
| Net Weight | 0.37 kg |
| Gross Weight | 0.56 kg |
Specification published by Labozon. Confirm the exact configuration on the written quotation before ordering.
Key features
What the range offers
- Roll and swing mixing motion for gentle and effective sample blending
- Adjustable speed control to accommodate different sample types
- Continuous and stable operation for routine laboratory use
- Low vibration and quiet performance to maintain laboratory comfort
- Compact footprint suitable for limited bench space
- Robust construction for long service life
- Compatible with a wide range of standard blood collection tubes
- Universal power supply suitable for international laboratory environments
Applications
Where it is used
- Used for homogeneous mixing of anticoagulated blood and biological samples in clinical laboratories. Suitable for blood banks, diagnostic centres, and research laboratories requiring consistent sample preparation.
- Used for gentle mixing of biological samples in applications such as immunoprecipitation, blood sample processing, molecular biology workflows, and prevention of coagulation during incubation.
- Laboratory tube rotators are ideal for Biochemistry, molecular biology and clinical applications. Provides a gentle but effective mixing of biological samples and used in a variety of applications including immune precipitations. prevention of blood coagulations, latex diagnostics etc.
- Vortex mixer is used for rapid and uniform mixing of small liquid samples in tubes by creating a controlled circular motion.
