Application
CO₂ Shaking Incubator
is ideal for:
Heating, cooling & storage
Laboratory Incubator
- Models
- LZ-ACI-A100; LZ-BCI-A100; LZ-BI-A200; LZ-CO2-A120; LZ-CSI-A110
- Anaerobic Chamber Formation Time
- < 1 Hour
- Sample Chamber Formation Time
- < 5 Minutes
- Anaerobic Maintenance Time
- > 12 Hours
- Temperature Range
- RT +3°C to 60°C
Constant-temperature, cooled and CO2 incubation for culture and stability work.
Added to your inquiry list. It travels with your next quote request.
5 models
Product Description
Laboratory Incubator specification for every model we supply. Figures are the manufacturer’s published values.
| Specification | Value |
|---|---|

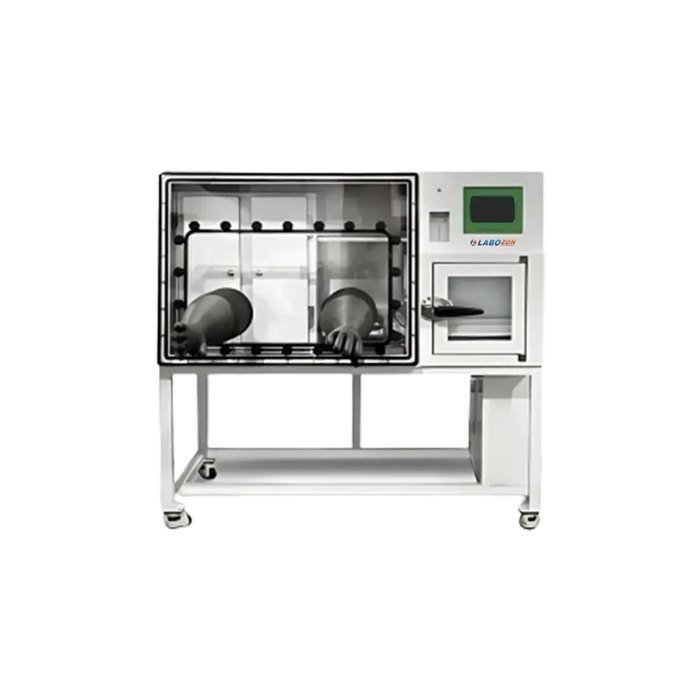

| LZ-ACI-A100 — Anaerobic Incubator | |
| Anaerobic Chamber Formation Time | < 1 Hour |
| Sample Chamber Formation Time | < 5 Minutes |
| Anaerobic Maintenance Time | > 12 Hours |
| Temperature Range | RT +3°C to 60°C |
| Temperature Stability | ≤ ±0.3°C |
| Temperature Uniformity | ≤ ±1°C |
| CO₂ Range | 0 – 20% |
| CO₂ Control Accuracy | ±0.1% |
| Humidity Range | 50 – 90% RH |
| Humidity Fluctuation | ±3% RH |
| Material | 304 Stainless Steel |
| Interior Chamber Size | 420 × 290 × 475 mm |
| Operation Chamber Size | 950 × 670 × 750 mm |
| Sampling Chamber Size | 400 × 300 × 320 cm |
| Power Rating | 1500 W |
| Power Supply | AC 220 V, 50 Hz |
| Packing Dimensions | 1510 x 920 x 1520 mm |
| Net Weight | 240 kg |
| Gross Weight | 308 kg |

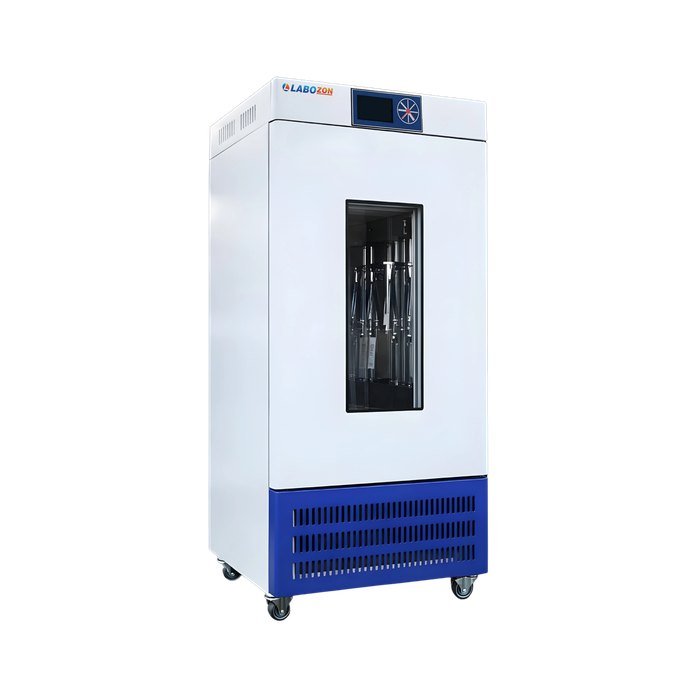

| LZ-BCI-A100 — Biochemistry Incubator | |
| Chamber Capacity | 150 L |
| Temperature Range | 0°C to 60°C |
| Temperature Fluctuation | ±1°C (37°C) |
| Temperature Uniformity | ±2°C (37°C) |
| Temperature Controller | PID |
| Temperature Sensor | PT100 |
| Display Resolution | 0.1°C |
| Refrigerant | R134a |
| Controller | 7-inch Programmable Touchscreen |
| Power | 1200 W |
| Power Supply | AC 220 V, 50 Hz |
| Internal Dimensions | 550 × 401 × 690 mm |
| External Dimensions | 692 × 690 × 1270 mm |
| Packing Dimensions | 820 x 820 x 1450 mm |
| Net Weight | 120 kg |
| Gross Weight | 140 kg |

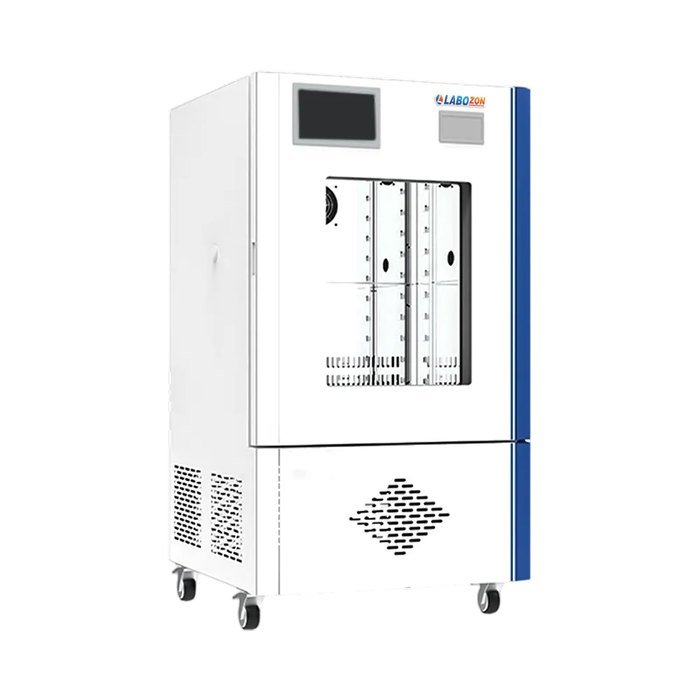

| LZ-BI-A200 — BOD Incubator | |
| Volume | 200 L |
| Temperature Range | 0 to 60 ◦c |
| Cooling | ±1◦c |

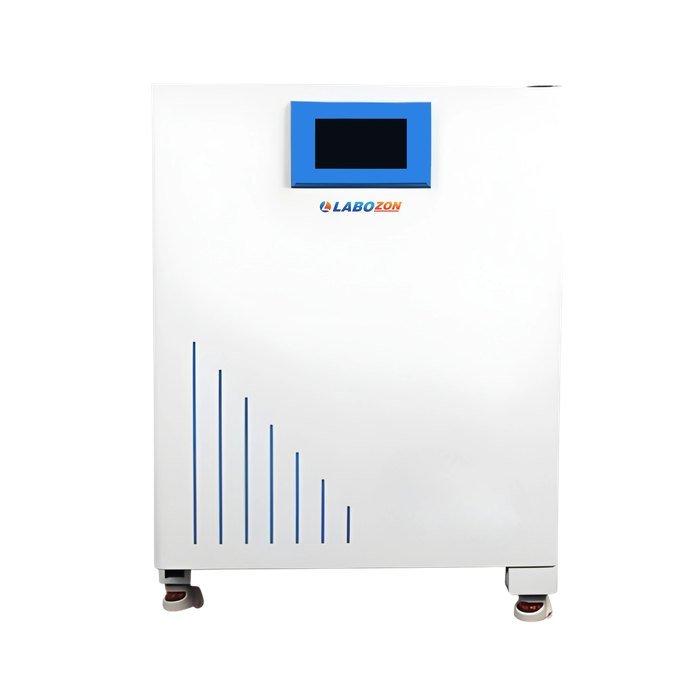

| LZ-CO2-A120 — CO2 Incubator | |
| Capacity | 80 L |
| CO2 Range | 0 to 20%(infrared sensor) |
| CO2 Control Type | Microcomputer controller |
| CO2 Control Resolution | 0.001 |
| Temperature Range | RT +5 to 60 ℃ |
| Shelves | Adjustable: 2 pcs |
| Door | With inner door and external door |
| Temperature Fluctuation | ≤ ±0.2℃(at 37℃) |
| Temperature Uniformity | ≤ ±0.3 ℃(at 37℃) |
| Heating | Air jacket& water jacket |
| Timer | 999h or continuous |
| Humidification | Water tank for natural evaporation |
| Disinfection | UV lamp for air jacket |
| Sterilization | With 90°C moist heat decontamination function (95%≤humidity≤99%RH) |
| Caster | Water reservoir in the bottom chamber ensures high humidity (90%≤humidity≤99%RH) |
| Power | Yes |
| Internal Dimension | 650 W |
| External Dimension | 368x452x517 mm |
| Packing Dimension | 611x773x841 mm |
| Gross Weight | 705x867x978 mm |

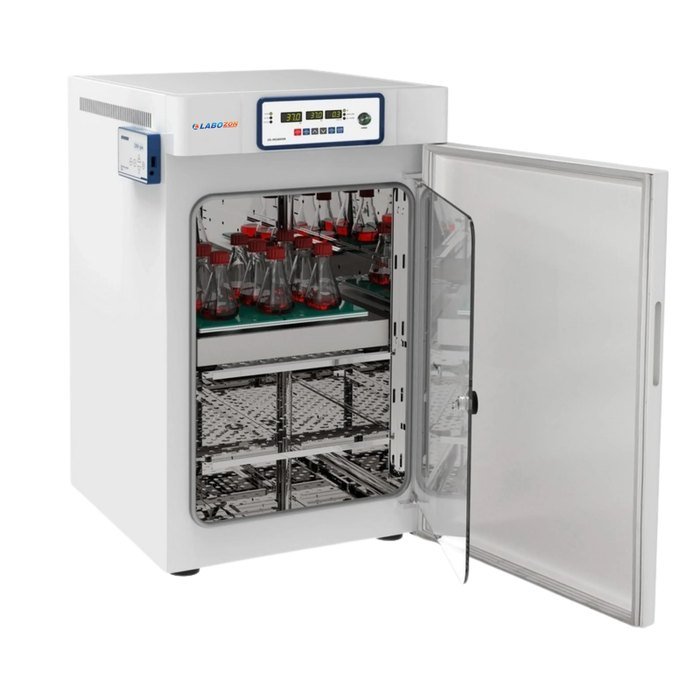

| LZ-CSI-A110 — CO2 Shaking Incubator | |
| Capacity | 180 L |
| Platform Size | 300 x 330 mm |
| Temperature Range | RT+5-60℃ |
| Display Precision | ±0.1°C (37°C) |
| Resolution | 0.1°C |
| Speed | 30-300rpm |
| Accuracy | ±1rpm |
| Controller | PID Microprocessor |
| Humidity | ≥70%（at 37°C) |
| CO2 Accuracy | ±0.1%(5%/37°C) |
| CO2 Resolution | 0.1% |
| CO2 Sensor | Dual infrared CO2 sensor |
| Heat Method | Air |
| Material | 304 stainless steel |
| Shelf | 1 (for shaker) |
| Chamber Dimensions | 473x528x710 mm |
| Dimensions | 560x620x945 mm |
| Weight | 80 kg |
Specification published by Labozon. Confirm the exact configuration on the written quotation before ordering.
Key features
What the range offers
- Supports anaerobic and microaerophilic operation modes
- Integrated control system
- Automatic humidity regulation
- High-efficiency palladium catalyst
- Rapid anaerobic environment generation
- Automatic gas replacement system
- UV sterilization lamp
- Automatic sleeve gassing system
Applications
Where it is used
Next step
Tell us the capacity and the duty.
We will confirm the right model, the price and the lead time.
