Heating, cooling & storage
Laboratory Hotplates
- Models
- LZ-DHP-A100; LZ-DHP-A101; LZ-DHP-A102; LZ-DHP-A103; LZ-DHP-A104
- Display Mode
- LED
- Set Temperature Range ( top plate)
- 50 to 300˚C
- Plate Dimension
- 170 × 170 mm
- Temperature Stability
- ± 2˚C
Ceramic and alloy-top hotplates for controlled heating on the bench.
Added to your inquiry list. It travels with your next quote request.
5 models
Product Description
Laboratory Hotplates specification for every model we supply. Figures are the manufacturer’s published values.
| Specification | Value |
|---|---|

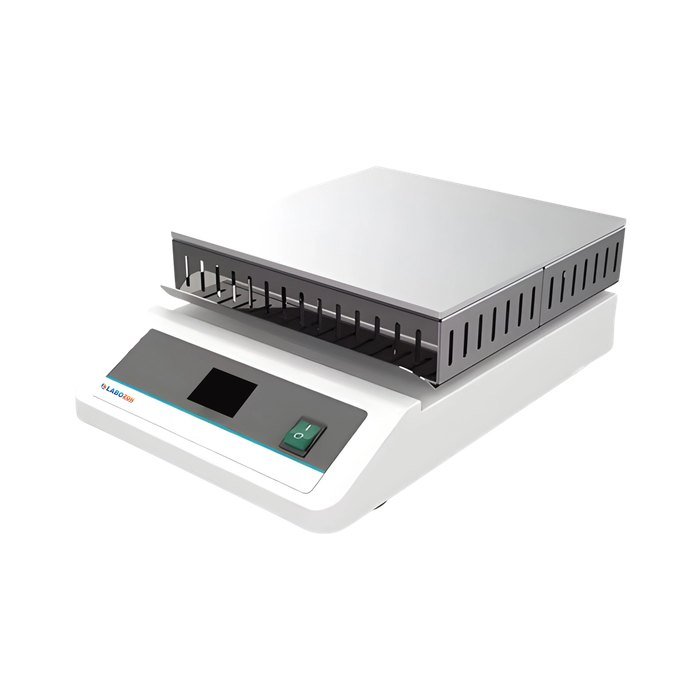

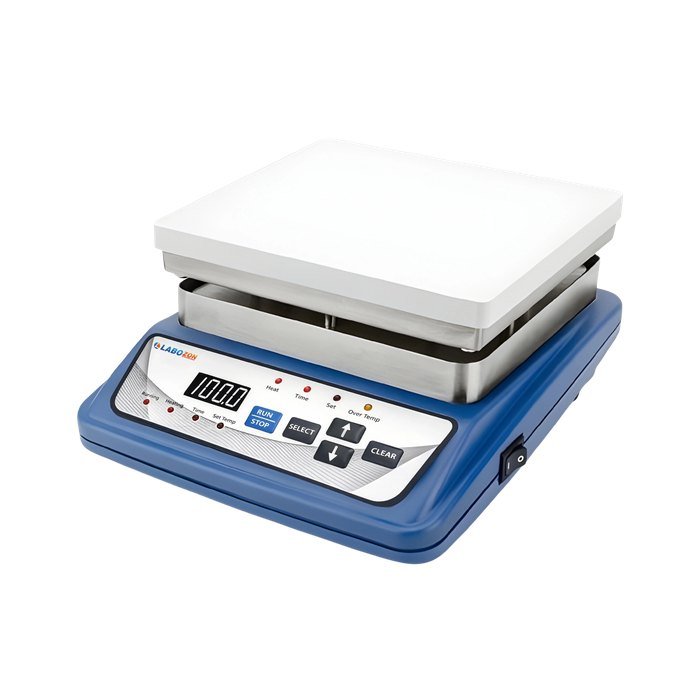

| LZ-DHP-A100 — Digital Hotplate | |
| Display Mode | LED |
| Set Temperature Range ( top plate) | 50 to 300˚C |
| Plate Dimension | 170 × 170 mm |
| Power | 680 W |
| Temperature Stability | ± 2˚C |
| Hot plate material | Aluminum coated with ceramic |
| Temperature Sensor | PT100-01 |
| Temperature Holder | PT100-05 holder |
| Set Temperature Range (with Pt100 sensor) | 40 to 300˚C |
| Outer Dimension | 240 × 280 × 70 mm |
| Packing Dimension | 450 × 450 × 250 mm |
| Net Weight | 2.8 kg |
| Gross Weight | 5.0 kg |
| LZ-DHP-A101 — Digital Hotplate | |
| Display Mode | LED |
| Set Temperature Range ( top plate) | 50 to 300˚C |
| Plate Dimension | 320 × 320 mm |
| Power | 1000 W |
| Temperature Stability | ± 2˚C |
| Hot plate material | Aluminum coated with ceramic |
| Temperature Sensor | PT100-01 |
| Temperature Holder | PT100-05 holder |
| Set Temperature Range (with Pt100 sensor) | 40 to 300˚C |
| Outer Dimension | 320 × 360 × 70 mm |
| Packing Dimension | 650 × 600 × 300 mm |
| Net Weight | 5.0 kg |
| Gross Weight | 10.0 kg |
| LZ-DHP-A102 — Digital Hotplate | |
| Display Mode | LED |
| Set Temperature Range ( top plate) | 50 to 300˚C |
| Plate Dimension | 400 × 300 mm |
| Power | 1500 W |
| Temperature Stability | ± 2˚C |
| Hot plate material | Aluminum coated with ceramic |
| Temperature Sensor | PT100-01 |
| Temperature Holder | PT100-05 holder |
| Set Temperature Range (with Pt100 sensor) | 40 to 300˚C |
| Outer Dimension | 470 × 410 × 70 mm |
| Packing Dimension | 700 × 650 × 250 mm |
| Net Weight | 7.0 kg |
| Gross Weight | 12.0 kg |
| LZ-DHP-A103 — Digital Hotplate | |
| Max Temperature | 350°C |
| Temperature Accuracy | ± 1% |
| Plate Temperature Uniformity | ± 10% |
| Plate Dimensions | 300 x 300 mm |
| Max load capacity | 20 kg |
| Temperature sensor | K type |
| Material | Aluminium |
| Heat Power | 1200 W |
| Power supply | 220V , 50/60Hz |
| External Dimensions | 370 x 340 x 220 mm |
| Packing Dimensions | 520 x 380 x 250 mm |
| Net Weight | 9 kg |
| Gross Weight | 10 kg |
| LZ-DHP-A104 — Digital Hotplate | |
| Temperature Range | RT+20 – 380°C |
| Plate Dimensions | 450 x 350 mm |
| Material | Main Body: Cold rolled steel with anti-bacteria powder coating Work plate: Stainless steel |
| Display | LED |
| Controller | PID |
| Power Consumption | 2000W |
| Power Supply | AC220V, 50/60Hz |
| Gross Weight | 21.5 kg |
Specification published by Labozon. Confirm the exact configuration on the written quotation before ordering.
Key features
What the range offers
- Designed with PID temperature control technology for accurate and reliable results
- Convenient temperature setting via on-touch control
- Offers complicated temperature control requirements
- Designed with bright LED screen can display both set value and actual temperature
- Material used aluminum coated with ceramic
- Timer function for automatic heating up to 100 hours
- Equipped with alarm signal output which can be applied to stop the operation of the hot plate and the other connected devices
- Offers external PT100 temperature sensor connection for direct and precise control of the actual temperature
Applications
Where it is used
- Digital Hotplate is used to uniformly heat samples and to heat glassware in a laboratory setting.
- Suitable for drying, heating, and temperature-controlled experiments in chemical analysis laboratories, industrial enterprises, healthcare facilities, environmental testing laboratories, biochemistry research centers, scientific research institutes, and educational laboratories.
Next step
Tell us the capacity and the duty.
We will confirm the right model, the price and the lead time.
