Furnace
- Models
- LZ-MFF-A200; LZ-MFF-A500; LZ-MFF-B105; LZ-TBF-C120; LZ-TBF-C138
- Capacity
- 4.5 L
- Chamber Dimension
- 200 × 150 × 150 mm
- Phase
- single phase
- Maximum temperature
- 1400℃
Muffle and tube furnaces for ashing, sintering and high-temperature work.
Added to your inquiry list. It travels with your next quote request.
5 models
Product Description
Furnace specification for every model we supply. Figures are the manufacturer’s published values.
| Specification | Value |
|---|---|

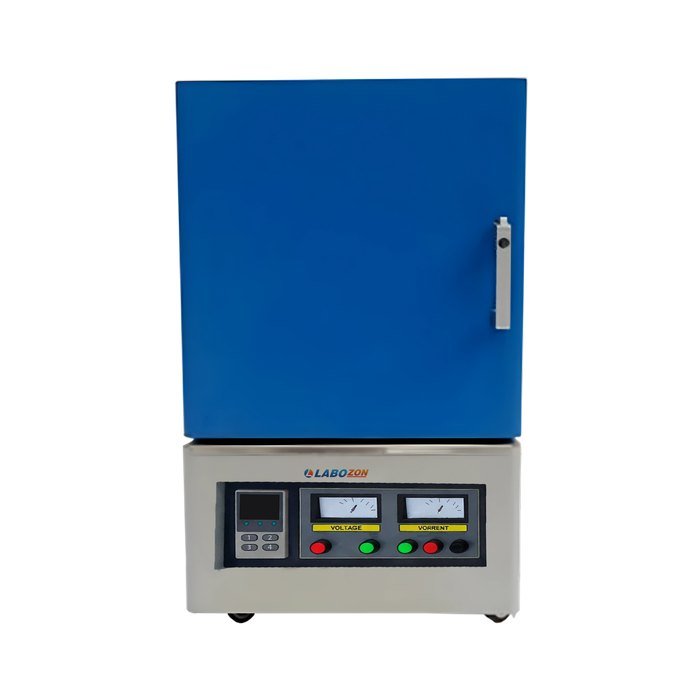

| LZ-MFF-A200 — Muffle Furnace | |
| Capacity | 4.5 L |
| Chamber Dimension | 200 × 150 × 150 mm |
| Phase | single phase |
| Maximum temperature | 1400℃ |
| Maximum Working Temperature | 0-1300 ℃ |
| Heating element | Silicon carbide rod |
| Maximum heating rate | ≤10℃/ Min |
| Recommended Cooling rate | 5 ℃ / min. |
| Thermocouple Type | S Type |
| Chamber material | alumina polycrystalline fiber |
| Temperature Control Accuracy | +/- 1 ℃ |
| Power consumption | 4 kW |
| Power supply | 220 V |

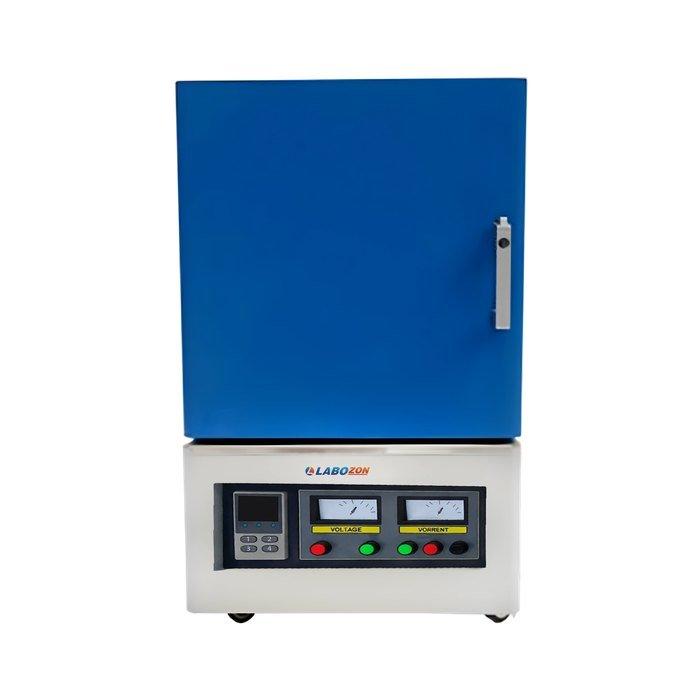

| LZ-MFF-A500 — Muffle Furnace | |
| Chamber Dimension | 200 x 150 x 150 mm |
| Phase | Two Phase |
| Chamber Material | Alumina Ceramic Fiber |
| Maximum Temperature | 1800 ℃ |
| Maximum Working Temperature | 0-1700 ℃ |
| Maximum Heating Rate | 0~10°C/ Min |
| Maximum Cooling Rate | 5 ℃ |
| Door Opening System | The furnace door built with strong sealing, easy to open and close the furnace door. |
| Temperature Control Accuracy | +/- 1 ℃ |
| Heating Element | Mosi2 heating element |
| Power Consumption | 4.5 kW |
| Power Supply | 220 V single/380 V,2 50/60 Hz |

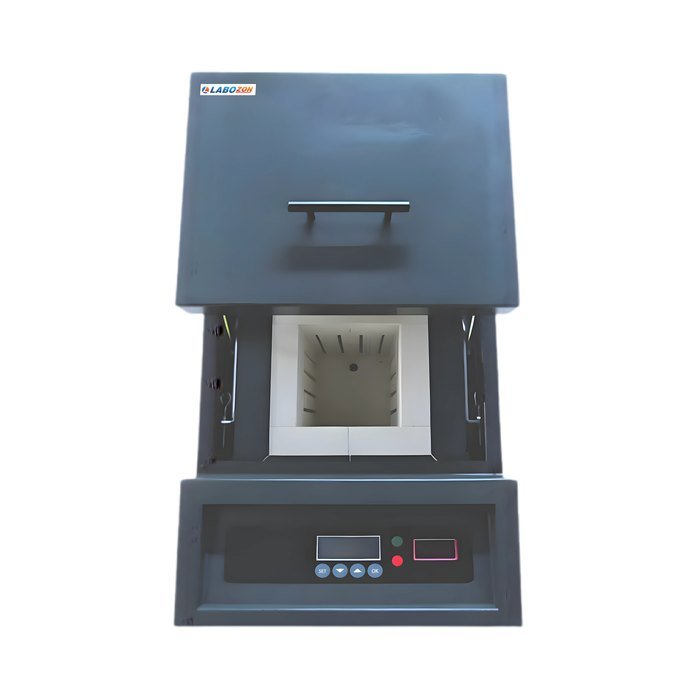

| LZ-MFF-B105 — Muffle Laboratory Furnace | |
| Capacity | 5 L |
| Temperature | 1100°C |
| Thermocouple Type | K Type |
| Material | Steel Sheet Housing; Epoxy Powder Coating |
| Heating Element | Quartz Tube |
| Heating Element Type | Fe-Cr-Al |
| Display | LCD |
| Accuracy | ±1 °C |
| Control Unit | B2 Software optional |
| Insulation Material | Internal: Insulating Fire Brick, External: Ceramic Fire Brick |
| Power Consumption | 2000 W |
| Internal Dimension | 150x150x225 mm |
| External Dimension | 446x618x620 mm |
| Net Weight | 43 kg |
| Gross Weight | 57 kg |

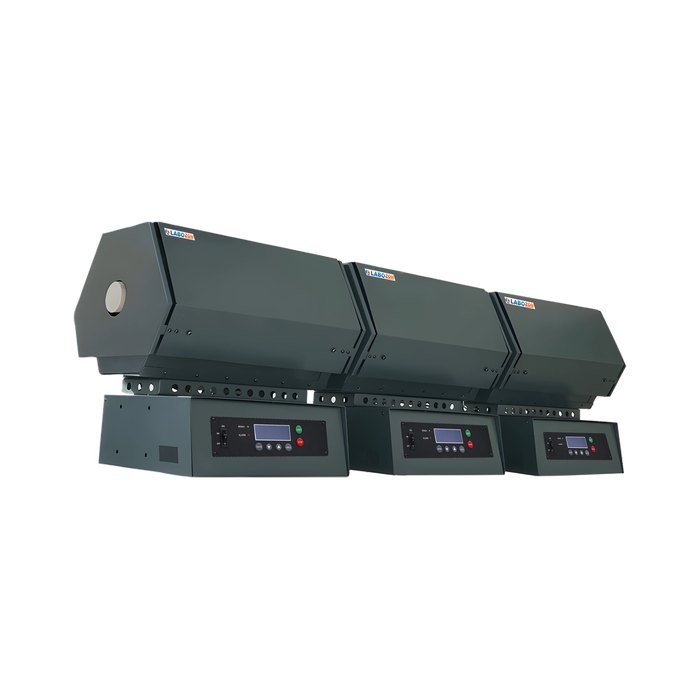

| LZ-TBF-C120 — Tube Furnace | |
| Tube Internal Diameter | 20 mm |
| Heated Zone Length | 250 mm |
| Tube Length | 530 mm |
| Tube Type | Mullit |
| Temperature | 1100°C |
| Thermocouple Type | K Type |
| Material | Steel Sheet Housing; Epoxy Powder Coating |
| Heating Element | Fe-Cr-Al |
| Display | LCD |
| Accuracy | ±1 °C |
| Software | B2/ E4/ U8/ S16 Software optional |
| Insulation Material | Ceramic Fibre Blanket |
| Power Consumption | 1100 W |
| External Dimension | 424x315x420 mm |
| Gross Dimension | 470x361x579 mm |
| Net Weight | 14 kg |
| Gross Weight | 20 kg |
| LZ-TBF-C138 — Tube Furnace | |
| Tube Internal Diameter | 38 mm |
| Heated Zone Length | 450 mm |
| Tube Length | 770 mm |
| Tube Type | Mullit |
| Temperature | 1100°C |
| Thermocouple Type | K Type |
| Material | Steel Sheet Housing; Epoxy Powder Coating |
| Heating Element | Fe-Cr-Al |
| Display | LCD |
| Accuracy | ±1 °C |
| Software | B2/ E4/ U8/ S16 Software optional |
| Insulation Material | Ceramic Fibre Blanket |
| Power Consumption | 1350 W |
| External Dimension | 634x369x464 mm |
| Gross Dimension | 675x415x623 mm |
| Net Weight | 27 kg |
| Gross Weight | 35 kg |
Specification published by Labozon. Confirm the exact configuration on the written quotation before ordering.
Key features
What the range offers
- Designed with 30-stage program temperature control intelligent PID adjustment
- Offers over-temperature protection, over current load protection, thermocouple burnout warning
- Furnace is made up of High-quality high-purity alumina polycrystalline fiber
- Material used stainless steel, will not rust, and will not slag when used for a long time
- Accurate measurement and control of temperature using S type thermocouple
- The furnace is equipped with communication interface and software
- The surface of the furnace is smooth and not easy to drop powder
- The double-layer furnace shell is equipped with an air-cooling system, which can quickly and gently adapt rise and fall in temperature
Applications
Where it is used
- Muffle Furnace is used in many research centers, medical laboratories to determine the non-volatile and non-combustible proportion of the sample. The testing device is also used for highly sophisticated metallurgical applications.
