Application
Pharmaceutical Industry
Sterility testing with microbial colony counting during formulation checks
Particle & environment
Colony Counter
- Models
- LZ-ACC-A112; LZ-ACE-A100; LZ-MCC-A110; LZ-SCC-A100
- Camera
- Color definition CCD
- Camera Resolution
- 5million, 8 million, 10 million three size optional
- Counting Software
- Smart counter software
- Colony Size Resolution
- > 0.1 mm
Manual and automatic plate counting for microbial limits and environmental monitoring.
Added to your inquiry list. It travels with your next quote request.
4 models
Product Description
Colony Counter specification for every model we supply. Figures are the manufacturer’s published values.
| Specification | Value |
|---|---|

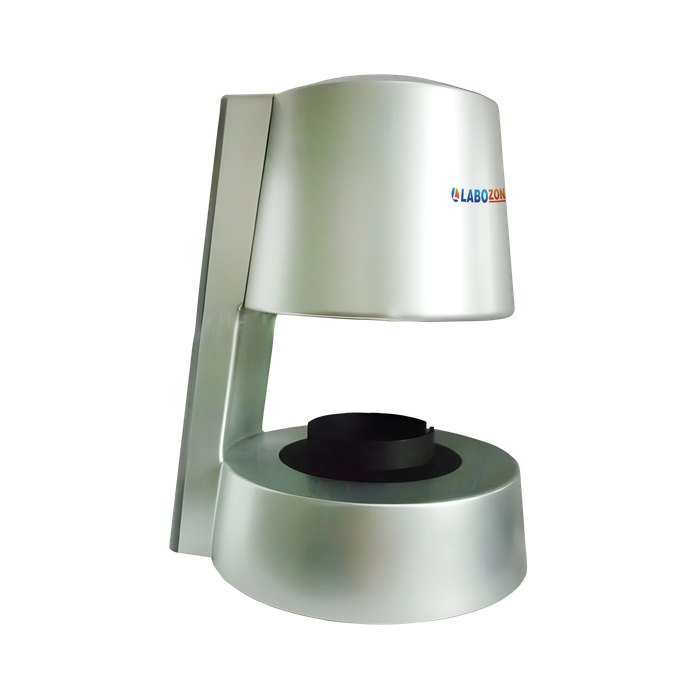

| LZ-ACC-A112 — Automatic Colony Counter | |
| Camera | Color definition CCD |
| Camera Resolution | 5million, 8 million, 10 million three size optional |
| Counting Software | Smart counter software |
| Colony Size Resolution | > 0.1 mm |
| Colony Color Recognition | 8 colors |
| Applicable Methods Plate Type | Spread plate, Pour plate, Membrane filter, Spiral plate |
| Counting Speed | ≤ 3 secs |
| Light Source | Long life dual LCD light |
| Working Temperature | 0 to 50°C |
| Material | ABS plastic |
| Size of Petri dish | 90mm and 50 mm standard |
| Electrical Supply | AC 220 V, 50 Hz |
| Power | 20 W |
| Host Dimension | 290 × 260 × 380 mm |
| Weight | 3 kg |

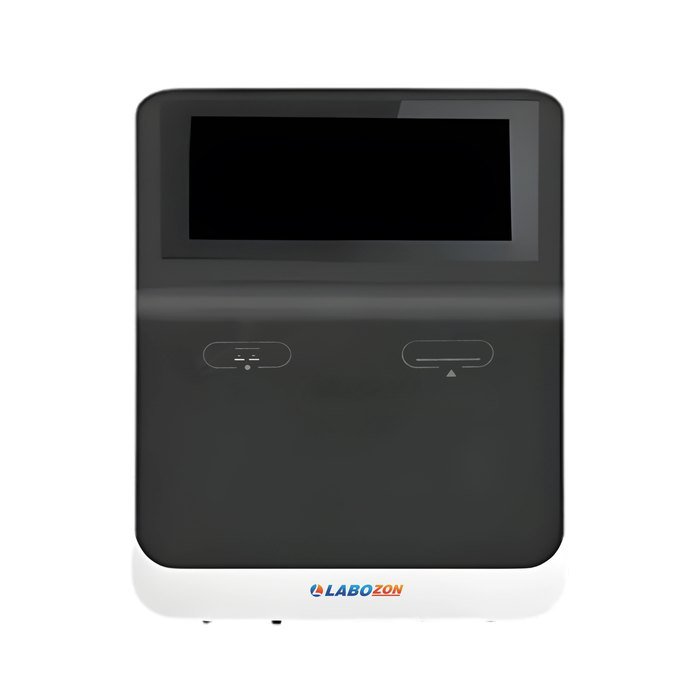

| LZ-ACE-A100 — Automated Cell Counter | |
| Amplification factor | 2.5 × 5.0 Megapixel |
| Focusing Method | Manual focusing and autofocusing |
| Cell Counting area | 2.15 mm × 1.62 mm |
| Cell Types determined | Cell lines, stem cells, primary cells, pollens, beer yeast |
| Cell size range | 4 to 60 µm (Optimal: 7 to 60 µm) |
| Cell Concentration Range | 104 to 107 cells/ml |
| Cell counting Time | < 9 sec |
| Data Storage capacity | 1000 counting reports and images at most |
| Power supply | 90 V to 264 V, 50/60Hz |
| Dimensions (W × D × H) | 212 × 165 × 264 mm |
| Weight | 3 kg |

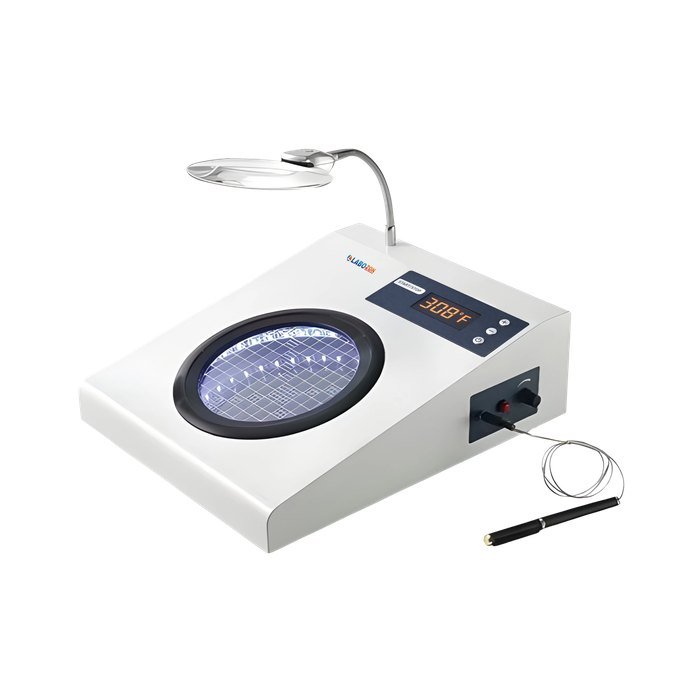

| LZ-MCC-A110 — Manual Colony Counter | |
| Temperature Range | 5 to 50 °C |
| Counting Range | 0 to 999 |
| Compatible Petri Dish | 50 to 150 mm |
| Relative Moisture | 0.8 |
| Magnification | 3 to 9 times |
| Digital Display | 3 digits |
| Lighting | Matrix LED (White light) |
| Power Consumption | 40 W |
| Power Supply | AC 100 to 240 V / 50 to 60 Hz |
| Protective Class | IP21 |
| Dimension | 360 × 300 × 180mm |
| Weight | 4.0 kg |

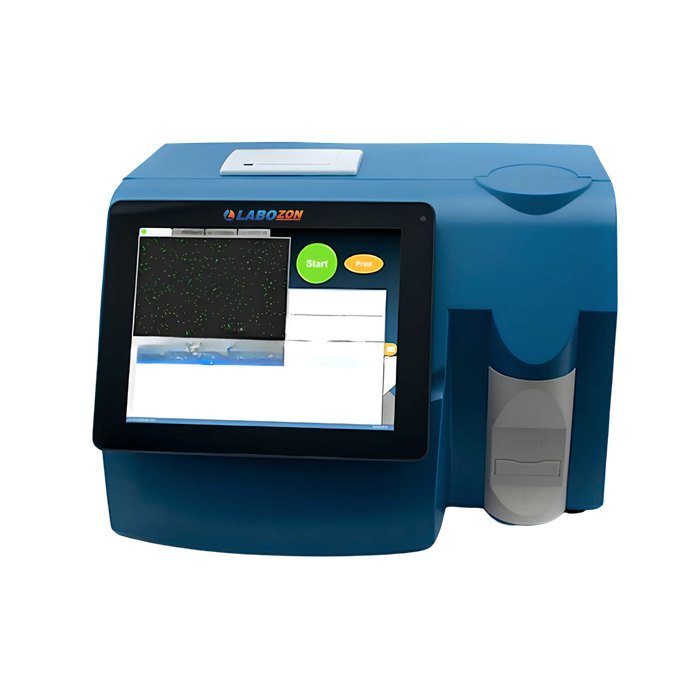

| LZ-SCC-A100 — Somatic Cell Counter | |
| Analysis Time | 20-60 sec |
| Sample Throughput | Up to 100 samples per hour |
| Measurement Range | 0 - 10 000 000 cell/ml |
| Cell Size Measurement Range | 2-30 μm |
| Measurement Reproducibility | CV<2% (600,000 cells/mL) |
| Overall Dimensions | 390*300*260 mm |
| Unit Weight | 7.3 Kg |
Specification published by Labozon. Confirm the exact configuration on the written quotation before ordering.
Key features
What the range offers
- Smart counter software for automated colony counting workflows in microbiology laboratories
- Image capture function for microbial culture plate viewing and detailed result observation
- Touch display interface for smooth navigation during routine colony counting procedures
- Data storage option for result saving and organized laboratory record management
- Automatic calculation mode for colony reporting and analysis output generation tasks
- Automated cell counting for routine sample analysis across laboratory workflows
- Cell viability assessment during testing procedures and sample evaluation activities
- Image capture support for clear observation, counting review, and analysis tasks
Applications
Where it is used
Application
Biotechnology Industry
Culture growth tracking across routine microbial research activities
Application
Clinical and Diagnostic Laboratories
Specimen examination with colony verification in daily laboratory work
Application
Food and Beverage Industry
Bacterial count review during hygiene and product quality checks
Application
Water and Environmental Testing
Water sample screening for microbial contamination monitoring
Application
Clinical Diagnostics Laboratories
Cell measurement during routine diagnostic sample evaluation and reporting work
Next step
Tell us the capacity and the duty.
We will confirm the right model, the price and the lead time.
