Application
Polymer Processing Units
Evaluation of melting and crystallization behavior during material processing
Weighing & measurement
Calorimeter
- Models
- LZ-DSC-A110
- Temperature Range
- RT to 550°C (Air cooled)
- Temperature Resolution
- 0.001°C
- Temperature Fluctuations
- ± 0.001°C
- Temperature Repeatability
- ± 0.1°C
Bomb and differential scanning calorimetry for calorific value and thermal behaviour.
Added to your inquiry list. It travels with your next quote request.
1 models
Product Description
Calorimeter specification for every model we supply. Figures are the manufacturer’s published values.
| Specification | Value |
|---|---|

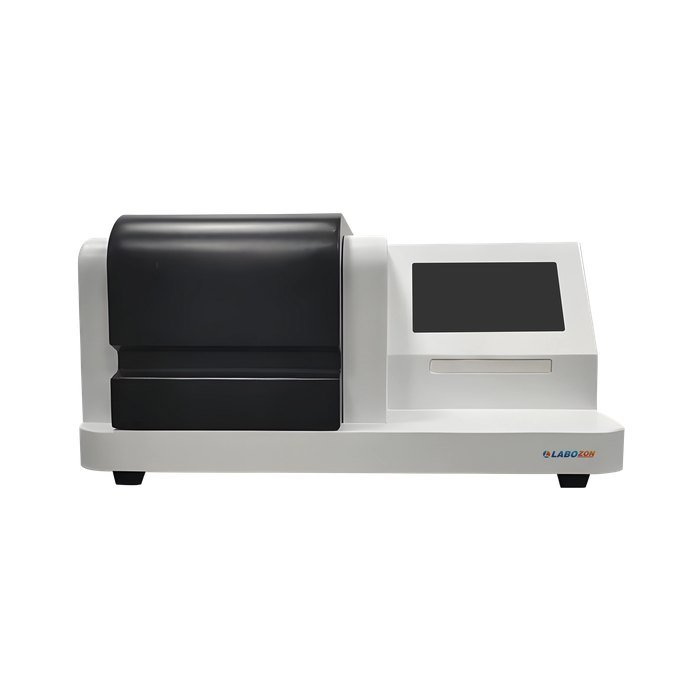

| LZ-DSC-A110 — Differential Scanning Calorimeter | |
| Temperature Range | RT to 550°C (Air cooled) |
| Temperature Resolution | 0.001°C |
| Temperature Fluctuations | ± 0.001°C |
| Temperature Repeatability | ± 0.1°C |
| Constant Temperature time | Program setting ≤24h |
| Heating Rate | 0.1 to 80°C / min |
| DSC Range | 0～±600mW |
| DSC Noise | 0.01 μW |
| DSC Resolution | 0.01 µW |
| DSC Accuracy | 0.1 mW |
| Atmosphere control gas | Nitrogen, Oxygen (Auto Switch) |
| Control Mode | Rising temperature, constant temperature (full automatic) |
| Curve Scanning | Rising scan |
| Gas Flow Control | Embedded digital flow meter & Software control, automatic changing |
| Gas flow rate | 0-300 mL/min |
| Gas pressure | 0.2 MPa |
| Cooling Device | Air Cool |
| Thermocouples | 3 sets |
| Parameter Standard | With standard material, with calibration function, the user may correct temperature and heat enthalpy |
| Display | 24 bit 7 inches LCD touch screen display |
| Interface | Standard USB connector |
| Power Supply | AC 220 V/50 Hz |
| Dimension | 670 x 590 x 480 mm |
| Weight | 40 kg |
Specification published by Labozon. Confirm the exact configuration on the written quotation before ordering.
Key features
What the range offers
- Oven structure system for uniform heating of samples during analysis
- Baseline stability system for steady heat flow measurement
- Air flow control system for regulated gas flow during testing
- Dual control system for operation through instrument and software
- Data storage system for recording and retrieving analysis results
Applications
Where it is used
Application
Pharmaceutical Development Labs
Analysis of thermal stability of drug compounds during formulation
Application
Food Processing Facilities
Assessment of thermal changes in ingredients during heating and cooling
Application
Chemical Testing Laboratories
Examination of thermal behavior and phase transitions of materials
Application
Academic Research Institutions
Investigation of heat flow characteristics in various materials
