Application
Laboratory Experiments
Provides precise temperature control for research and analytical work
Heating, cooling & storage
Bath and Circulator
- Models
- LZ-CB-A100; LZ-CWB-A105; LZ-HOB-A100; LZ-LWB-A110; LZ-OB-A100
- Type
- Constant temperature bath
- Capacity
- 10.9 L
- Pump ( Flux )
- 8 L / min
- Temperature
- RT + 5 to 100°C
Circulating and constant-temperature baths for sample conditioning and controlled heating.
Added to your inquiry list. It travels with your next quote request.
5 models
Product Description
Bath and Circulator specification for every model we supply. Figures are the manufacturer’s published values.
| Specification | Value |
|---|---|

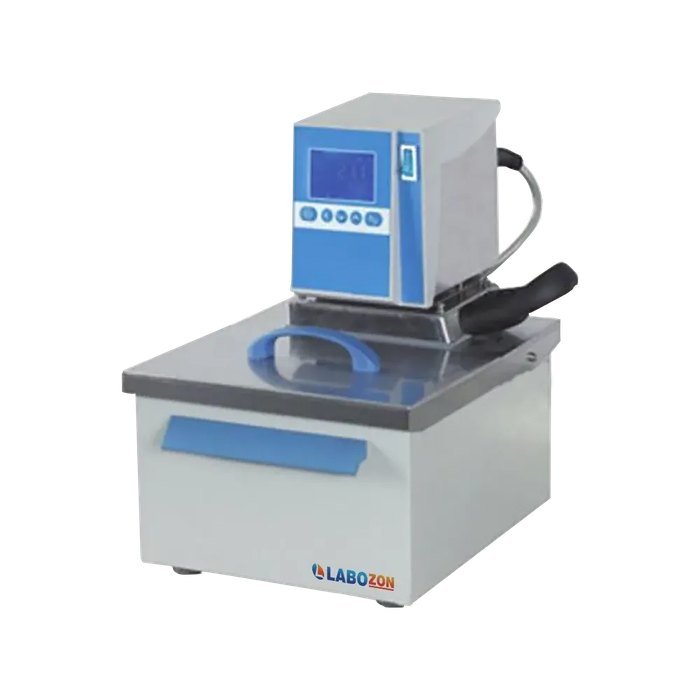

| LZ-CB-A100 — Circulating Bath | |
| Type | Constant temperature bath |
| Capacity | 10.9 L |
| Pump ( Flux ) | 8 L / min |
| Temperature | RT + 5 to 100°C |
| Precision | ±0.1 |
| Ambient temperature | + 5 to 35 °C |
| Liquid medium | Pure water , Mineral oil ( > 80°C) , Antifreeze ( < 5°C) |
| Water bath interface | External |
| Power supply | 220 V, 50 Hz |
| Power Consumption | 1050 W |
| Internal dimension | 240 × 170 × 150 mm |
| Packing Dimension | 430 × 380 × 450 mm |
| Gross weight | 8 kg |

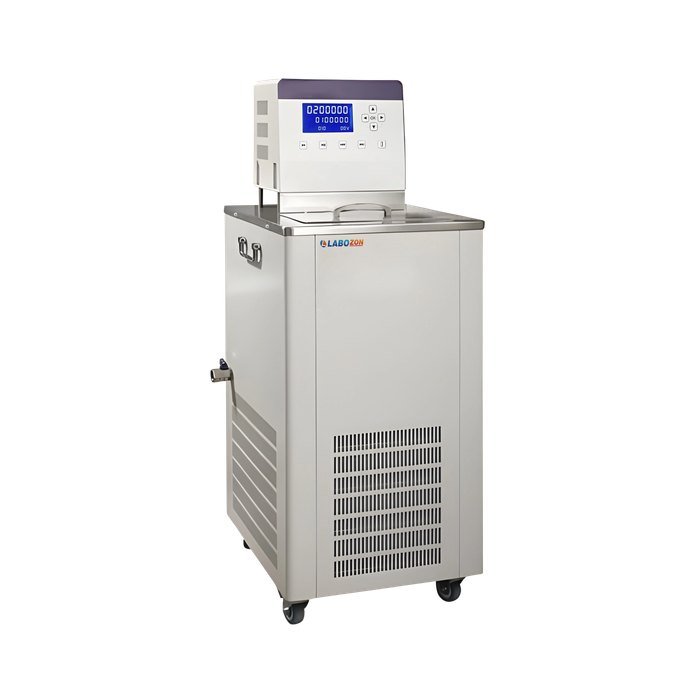

| LZ-CWB-A105 — Constant Temperature Water Bath | |
| Capacity | 5 L |
| Temperature Range | RT~100 |
| Tem Uniformity (Hori/Vertical) | ±0.005 to ±0.01℃ |
| Drain | Yes |
| Digital Resolution | 0.0001°C |
| Temperature Fluctuation | ±0.005 to ±0.01°C |
| Display | LCD |
| Sensor | PT100 |
| Interface | RS232 or RS485 |
| Work Slot(mm2) | 180×140 |
| Inner Groove Dimension | 275×190×120 mm |

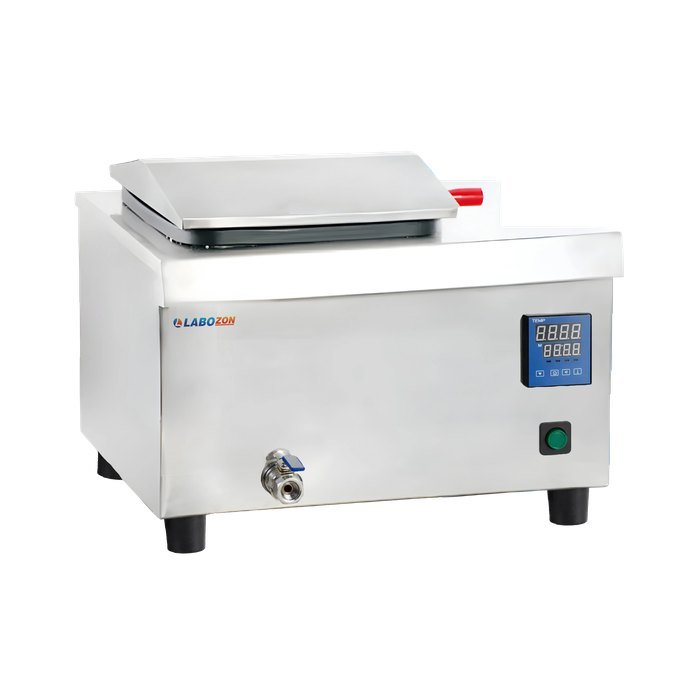

| LZ-HOB-A100 — Heating Oil Bath | |
| Volume | 12 L |
| Temperature Range | RT+20 to 200℃ |
| Temperature Stability | ±0.5℃ |
| Power supply | 1000 W |
| Deviation Alarm | ±2℃ |
| Timer Range | 0 to 9999 |
| Internal Dimension | 250 × 250 × 200 mm |
| Power consumption | AC 220V, 50 Hz |
| Net weight | 12 kg |
| Gross weight | 15 kg |

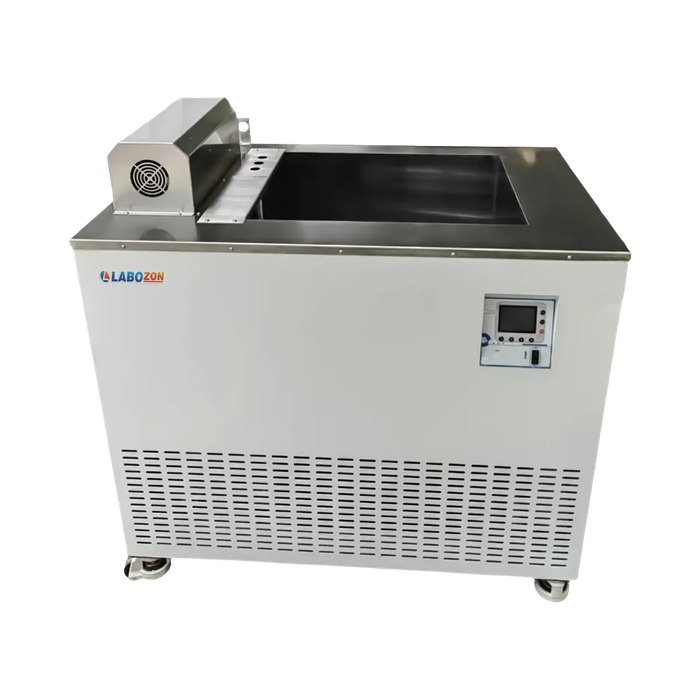

| LZ-LWB-A110 — Low Temperature Water Bath | |
| Capacity | 300 L |
| Chamber Dimensions | 800 x 800 x 400 mm |
| Temperature Range | -5-100°C |
| Temperature Fluctuation | ± 0.1°C |
| Temperature Uniformity | ± 0.1°C |
| Resolution | 0.01°C |
| Circulation Mode | Internal / external |
| Display | LCD |
| Sensor | PT100 |
| Interface | RS485, Modbus protocol |
| Mixing motor | 90W*2 |
| Drain | Yes |
| Material | SUS304 inner groove galvanized sheet spray coating external |
| Alarm | Yes |
| Cooling Power | 2500W |
| Power Consumption | 8800 W |
| Power Supply | 380V, 50Hz |
| External Dimensions | 1500 x 1000 x 1200 mm (approx.) |
| Weight | 300 kg |

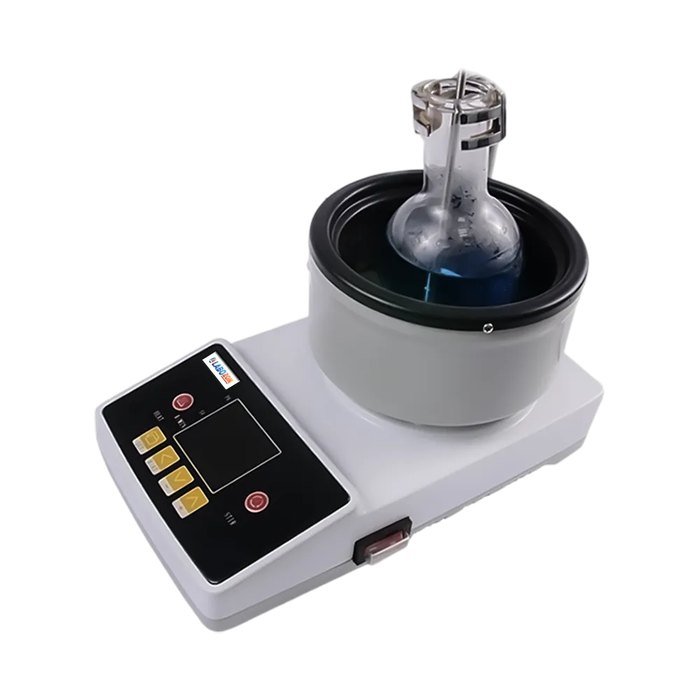

| LZ-OB-A100 — Laboratory Oil Bath | |
| Bath Volume | 2L |
| Top Pot Volume | 2.5L |
| Working Area | Φ190 × 75 |
| Temperature Range | Machine: 400°C Top pot: 350°C |
| Temperature Accuracy | +/- 1 degree |
| Temperature Uniformity | ±2°C |
| Temperature Controller | PID Auto |
| Ambient Temperature | 40°C |
| Sensor | PT100 |
| Stirring Speed | 100-1800rpm |
| Display | Digital |
| Stir Speed Accuracy | +/- 1 rpm |
| Material | Double layers. Outside layer--stainless steel 304 Internal layer: Aluminium with sprayed Teflon |
| Motor Power | 40W.DC20 |
| Heating Power | 400 W |
| Power Consumption | 450 W |
| Power Supply | 160 - 240V , or 110- 130V |
| Internal Dimensions | Φ190 × 90 |
| External Dimensions | 392 x 245 x 270 mm |
| Packing Dimensions | 450 x 280 x 300 mm |
| Gross Weight | 8.1 kg |
Specification published by Labozon. Confirm the exact configuration on the written quotation before ordering.
Key features
What the range offers
- Ensures steady liquid circulation for uniform temperature distribution
- Precise microprocessor temperature control with fast response
- Built-in alarms for abnormal temperature or low water levels
- Compact design with easy access for sample placement
- User-friendly interface for straightforward operation and monitoring
- PID control with a PT100 sensor maintains accurate water and oil temperatures.
- A 5 L chamber with an LCD screen simplifies sample monitoring and operation.
- A non-heat centrifugal circulation pump maintains a uniform temperature distribution.
Applications
Where it is used
Application
Chemical Reactions
Supports controlled heating or cooling for experimental processes
Application
Biological Studies
Maintains suitable conditions for handling biological and clinical samples
Application
Process Fluids
Regulates liquids for consistent performance in lab testing
Application
Sample Conditioning
Prepares materials at uniform temperatures for laboratory procedures
Application
Laboratory Research
Maintains precise temperature for chemical, biological, and pharmaceutical experiments.
