Tablet & capsule
Tablet Hardness Tester
- Models
- BYD-2
- Model
- BYD-2
- Test Range
- 2~200N/500N(0.2~20kg), Customize: 2~500N(0.2~50kg)
- Resolution
- 0.1N, 0.01kg
- Accuracy
- ±0.5%
Measures the crushing strength of a tablet so compression settings can be corrected on the press.
Added to your inquiry list. It travels with your next quote request.

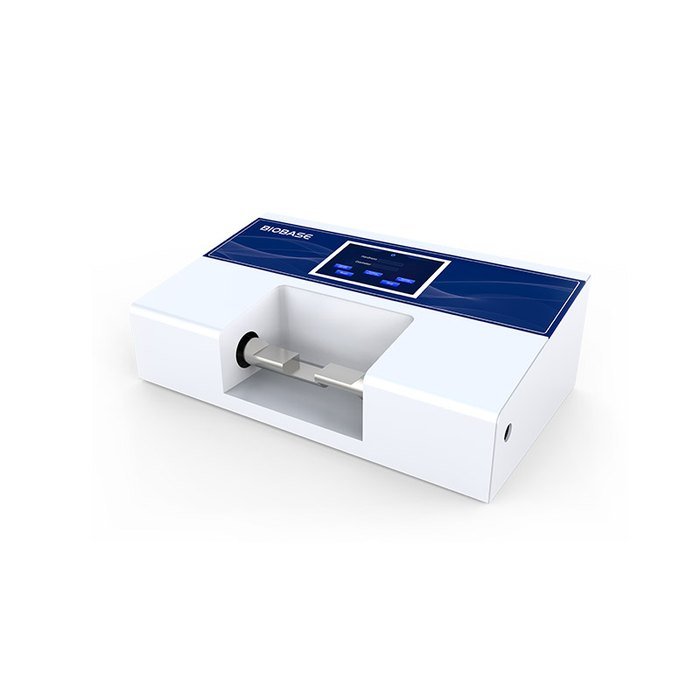

BYD-2
Product Description
Tablet Hardness Tester specification for every model we supply. Figures are the manufacturer’s published values.
| Specification | Value |
|---|---|
| BYD-2 — Tablet Hardness Tester | |
| Model | BYD-2 |
| Test Range | 2~200N/500N(0.2~20kg), Customize: 2~500N(0.2~50kg) |
| Resolution | 0.1N, 0.01kg |
| Accuracy | ±0.5% |
| Tablet Test Diameter | 2~40mm |
| Repeatability | ±1% |
| Number of Tablets per Test Group | ≤100 |
| Consumption | 40W |
| Power Supply | AC220V, 50/60Hz(Standard); AC110V, 60Hz(Optional, external transformer) |
| External Size(W*D*H)mm | 400*240*160 |
| Package Size(W*D*H)mm | 480*310*250 |
| Net Weight(kg) | 8 |
| Gross Weight (kg) | 12 |
Specification published by Biobase. Confirm the exact configuration on the written quotation before ordering.
Next step
Tell us the method and the throughput.
We will confirm the right model, the price and the lead time.
