Tablet & capsule

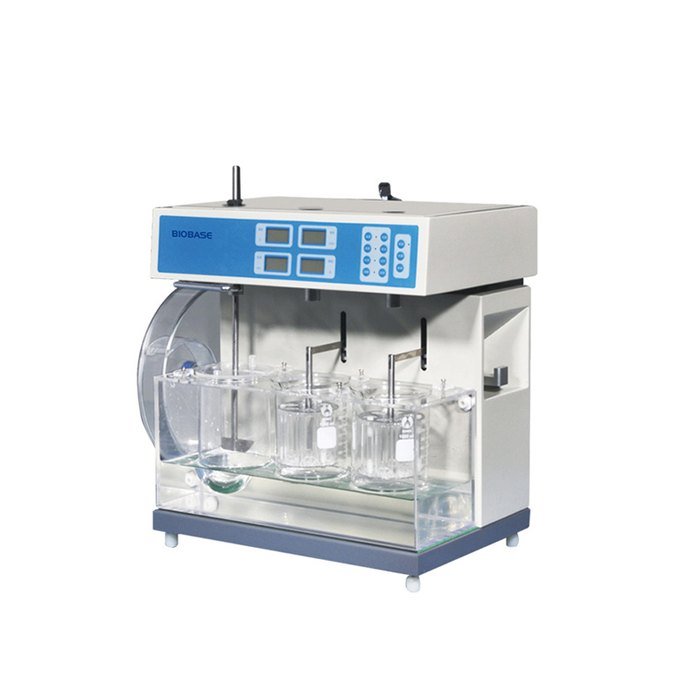

Tablet Four-use Tester
- Models
- TFUT-3
- Model
- TFUT-3
- Temperature Range
- (20~40°C)±0.3°C
- Speed Range
- (20~200rpm)±2rpm
- Automatic Time Range
- (1~900min)±0.5min
Hardness, friability, thickness and diameter on one bench footprint, for labs short of space.
Added to your inquiry list. It travels with your next quote request.
TFUT-3
Product Description
Tablet Four-use Tester specification for every model we supply. Figures are the manufacturer’s published values.
| Specification | Value |
|---|---|
| TFUT-3 — Tablet Four-usage Tester | |
| Model | TFUT-3 |
| Temperature Range | (20~40°C)±0.3°C |
| Speed Range | (20~200rpm)±2rpm |
| Automatic Time Range | (1~900min)±0.5min |
| Stations of Dissolution | 3 |
| Paddle Radial Run-out | ±0.5mm |
| Basket Radial Run-out | ±1.0mm |
| Basket Assemblies | 2 |
| Nacelle Back and Forth Frequency | (30~32)times/min |
| Nacelle Back and Forth Range | (55±2)mm |
| Drum | 1 |
| Drum's Inner Size | φ286*H39mm |
| Tablet Fall Height | 156mm |
| Rotating Speed | (25±1 )times/min |
| Rotating Count | (100±1)turns |
| Hardness Range | (25~199)±1N |
| Diameter Range | (3~40)mm |
| Power Supply | AC110/220V±10%, 50/60Hz |
| Dimensions(W*D*H)mm | 520*380*470 |
| Packing Size(W*D*H)mm | 700*440*680 |
| Gross Weight(kg) | 45 |
Specification published by Biobase. Confirm the exact configuration on the written quotation before ordering.
