Melting Point Tester
- Models
- BK-P682; BMP420; BMP-1B; MPTD-1
- Measurement Mode
- Automatic/visual(high-definition carnera, video caplure, playback monitoring)
- Audit Trail
- Optional(FDA)
- Electronic Signature
- YES
- Resolution
- 0.01℃
Melting range as an identity and purity check on actives, excipients and chemical reagents.
Added to your inquiry list. It travels with your next quote request.
4 models
Product Description
Melting Point Tester specification for every model we supply. Figures are the manufacturer’s published values.
| Specification | Value |
|---|---|

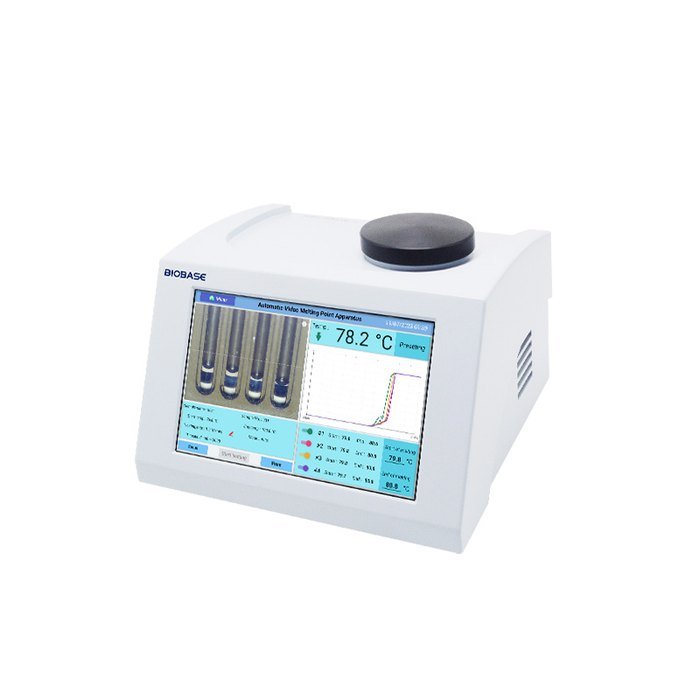

| BK-P682 — Video Melting Point Apparatus BK-P685 | |
| Measurement Mode | Automatic/visual(high-definition carnera, video caplure, playback monitoring) |
| Audit Trail | Optional(FDA) |
| Electronic Signature | YES |
| Resolution | 0.01℃ |
| Linear Heating-up Rate | 0.1℃/min~20℃/min |
| Accuracy | ≤200℃±0.3℃; >200℃±0.5℃ |
| Repeatability | 0.3℃(heating rate: 1.0℃/min) |
| Linear Heating Rate Error | ±10% |
| Number of Capillary | 4 |
| Capillary Dimensions | Outer diameter: Φ1.4mm, inner diameter: Φ1.0mm, length: 90mm |
| Height of Sample | 3mm |
| Operation System | Android |
| Display | 10.1 inches touch screen |
| Interface | 1*RS232, 3*USB, 1*RJ-45, WIFI |
| Power Supply | AC100~240V, 50/60Hz, 150W |
| Package Size(W*D*H) | 495*493*350mm |
| Gross Weight | 5kg |

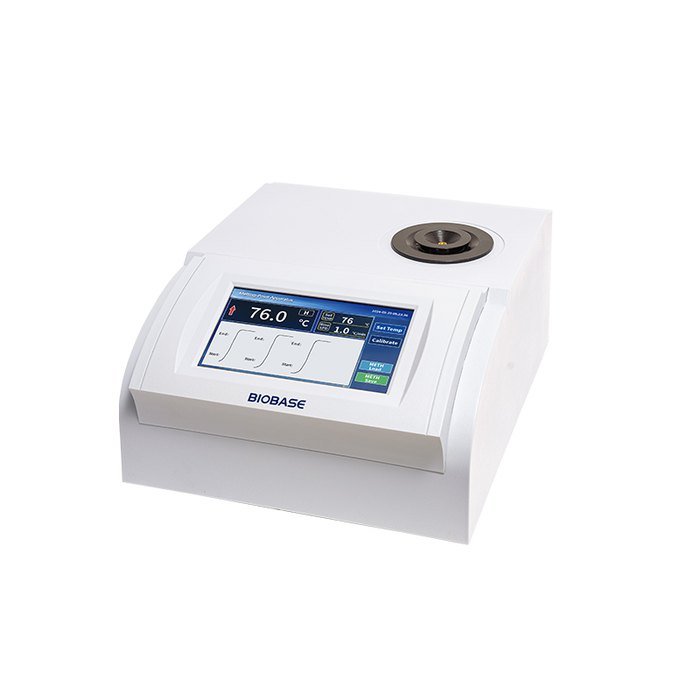

| BMP420 — Colorless and color Sample Manual Melting Point Apparatus | |
| Model | BMP420 |
| Temperature range | RT~300°C |
| Temperature accuracy | 0.4°C (< 200°C); 0.7°C (2200°C) |
| Temperature resolution | o.1 °C |
| Temperature repeatability | 0.2°C at 0.2°C/min |
| Linear heating up rate | 0.1 to 20°C/min |
| Display | 8.1 inch LCD touch screen |
| Standard capillary diameter | Internal dia. 1.0mm; External dia. 1.4mm |
| Capacity per batch | 4 pcs |
| Interface | USB,Wire or wireless |
| Power consumption | 120W |
| Power supply | 110V~240V,50/60HZ |
| External size(W*D*H) | 305*220*230mm |
| Package size(W*D*H) | 470*345*390mm |
| Gross weight | 8kg |

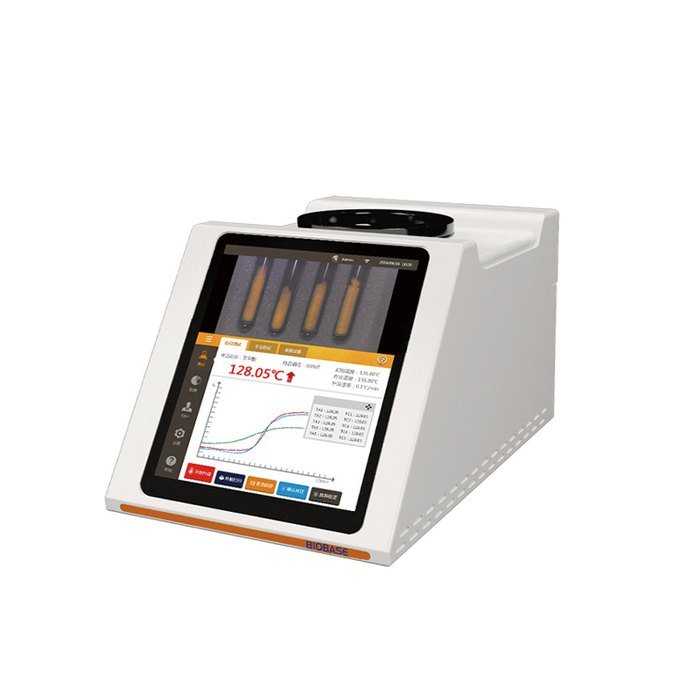

| BMP-1B — Digital Melting Point Apparatus | |
| Model | BMP-1B |
| Measuring Range | RT~320℃ |
| Resolution | 0.1℃ |
| Linear Heating-up Rate | 0.1℃/min~20℃/min |
| Temperature Accuracy | ±0.4℃(≤200℃), ±0.7℃(>200℃) |
| Repeatability | 0.3℃(Heating rate: 1.0℃/min) |
| Capillary Size | φ1.4mm(outside diameter), φ1.0mm(inside diameter), 90mm(length) |
| Sample Loading Height | 3mm |
| Data Storage | / |
| Interface | RS232, USB |
| Optional Accessory | Thermal printer |
| Power Supply | AC110~240V, 50/60Hz |
| External Size(W*D*H) | 360*290*170mm |
| Package Size(W*D*H) | 500*445*330mm |
| Gross Weight | 11kg |

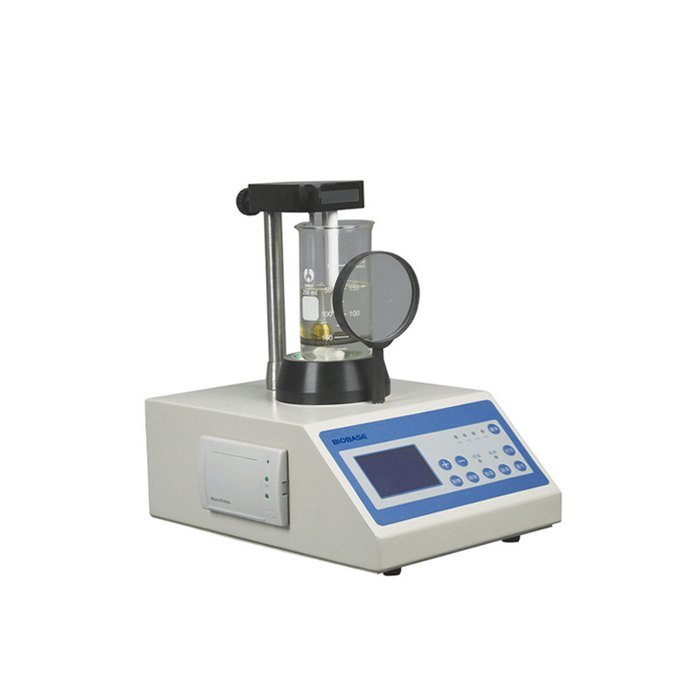

| MPTD-1 — Melting Point Tester | |
| Model | MPTD-1 |
| Melting Point Test Range | RT~290°C |
| Heating Rate | Four levels: 0.5°C/min; 1°C/min; 1.5°C/min; 3.0°C/min |
| Deviation of Linear Heating Rate | <5% |
| Temperature Transfer Medium | Methyl silicone oil |
| Liquid Cup for Temperature Transfer | 250ml beaker in tall form |
| Melting Point Test Precision | ≤±0.5°C, melting point <200°C ≤±1.0°C, melting point ＞200°C |
| Indicating Value Resolution | 0.1 °C |
| Operational Environment Temperature | 18°C~28°C |
| Interface | Standard serial printing interface, with micro-printer |
| Power Supply | AC220V, 50/60Hz(Standard); 110V, 50/60Hz(Optional) |
| External Size(W*D*H) | 200*320*305mm |
| Package Size(W*D*H) | 410*295*430mm |
| Net Weight | 5kg |
| Gross Weight | 8kg |
Specification published by Biobase. Confirm the exact configuration on the written quotation before ordering.
